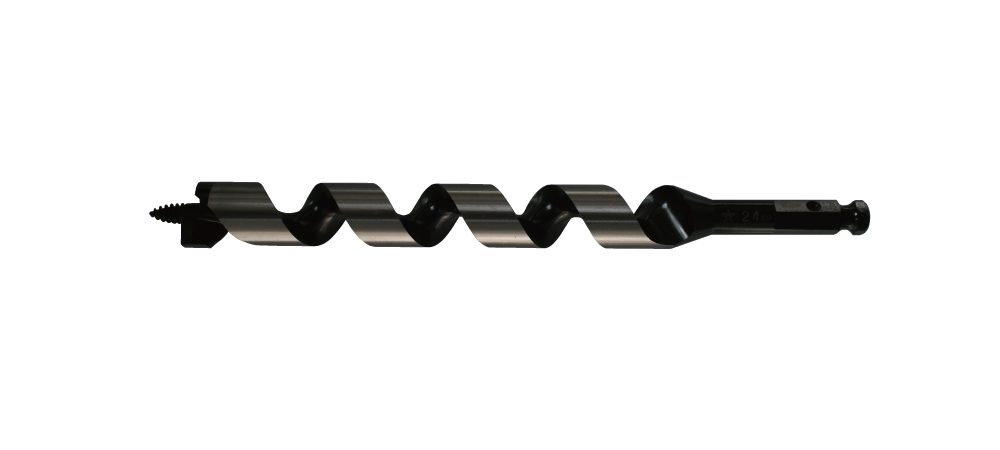

No.10　Standard Ship Auger

Specifications

Usage	Wood
Material(s)	High Carbon Steel
Recommended tool(s)	Electric Power Drill
RPm Range	Less than 600rpm
Shank Shape	：Hexagon　：Three Flats
Caution	Cutting diameter is inch size. The hole might be a little different from indication size. Please choose bigger size. Without cutting spur. Please use bigger size due to burr.

Sizes

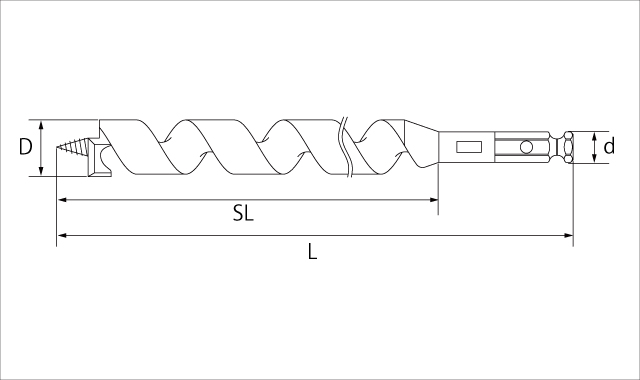

size：D　Overall Length：L　Spiral Length：SL　Shank Shaped：d　Unit：mm

No.10S　Standard Ship Auger Short Type

Product No.	Size	Overall Length	Spiral Length	Shank Shape
10S-180	11/16" (18mm)	190	135	12.5
10S-210	13/16" (21mm)	190	135	12.5
10S-240	15/16" (24mm)	190	135	12.5
10S-270	1-1/16" (27mm)	190	135	12.5

QTY(Inner Box)：6pcs
※We can produce nonstandard sizes below. Please contact us.
Size：1/2"(13mm)・9/16" (14mm)・5/8" (16mm)・3/4" (19mm)・7/8" (22mm)・1" (25mm)・1-1/8" (29mm)・1-1/4" (32mm)・1-3/8" (35mm)・1-1/2" (38mm)

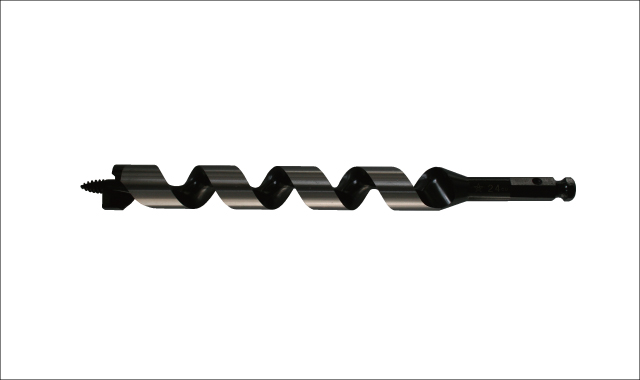

No.10M　Standard Ship Auger Middle Type

Product No.	Size	Overall Length	Spiral Length	Shank Shape
10M-130	1/2" (13mm)	250	195	12.5
10M-160	5/8" (16mm)	250	195	12.5
10M-180	11/16" (18mm)	250	195	12.5
10M-210	13/16" (21mm)	250	195	12.5
10M-240	15/16" (24mm)	250	195	12.5
10M-270	1-1/6" (27mm)	250	195	12.5
10M-300	1-3/16" (30mm)	250	195	12.5
10M-320	1-1/4" (32mm)	250	195	12.5
10M-350	1-3/8" (35mm)	250	195	12.5
10M-380	1-1/2" (38mm)	250	195	12.5

QTY(Inner Box)：6pcs / 32mm and up 3pcs

No.10L　Standard Ship Auger Long Type

Product No.	Size	Overall Length	Spiral Length	Shank Shape
10L-180	11/16" (18mm)	457	381	12.5
10L-210	13/16" (21mm)	457	381	12.5
10L-240	15/16" (24mm)	457	381	12.5
10L-270	1-1/6" (27mm)	457	381	12.5

QTY(Inner Box)：6pcs
※We can produce nonstandard sizes below. Please contact us.
Size：1/2" (13mm)・9/16" (14mm)・5/8" (16mm)・3/4" (19mm)・7/8" (22mm)・1" (25mm)・1-1/8" (29mm)・1-1/4" (32mm)・1-3/8" (35mm)・1-1/2" (38mm)

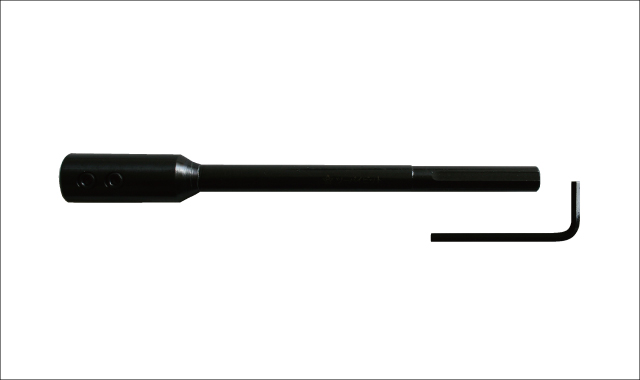

No.10-LS　Standard Ship Auger Extension Bar

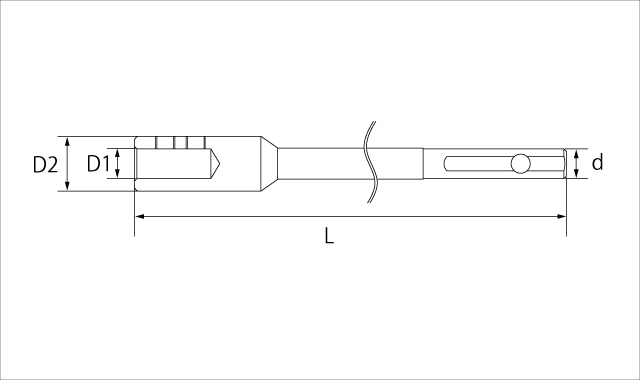

Inner Diameter：D1　Outer Diameter：D2　Overall Length：L　Shank Shape：d　Unit：mm

Product No.	Overall Length	Inner Diameter	Outer Diameter	Shank Shape
10-LS220	220（9"）	12.5	23	12.5

※Can be attached to a Standard Ship Auger shaft with a shank shape of 12.5 mm. However, when using it as a substitute for a long drill, install a size of 24 mm or more. If it is smaller than 24 mm, the outer diameter of the socket will be larger than the drill size.
