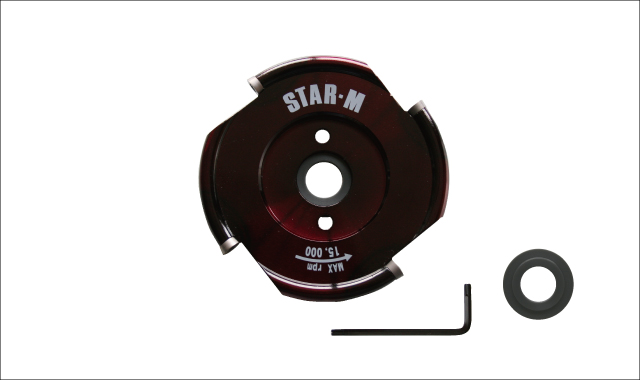

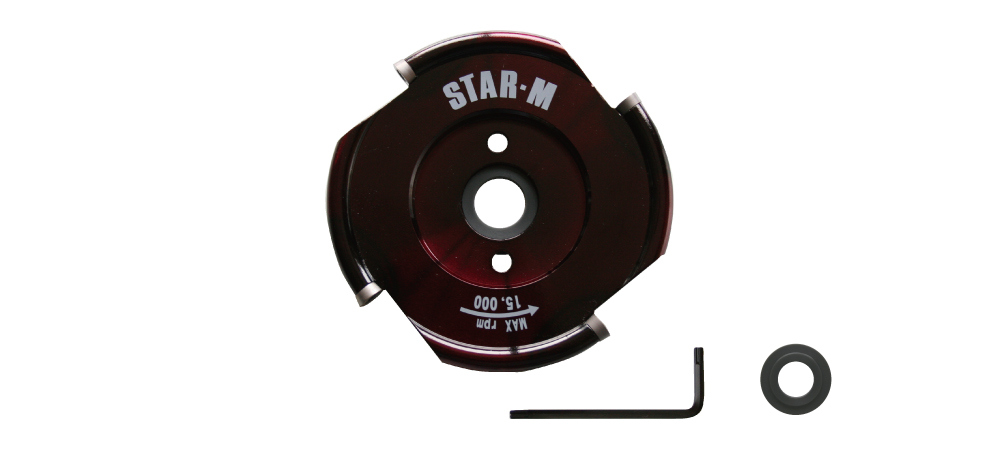

No.560 T.C.T. Woodcarver

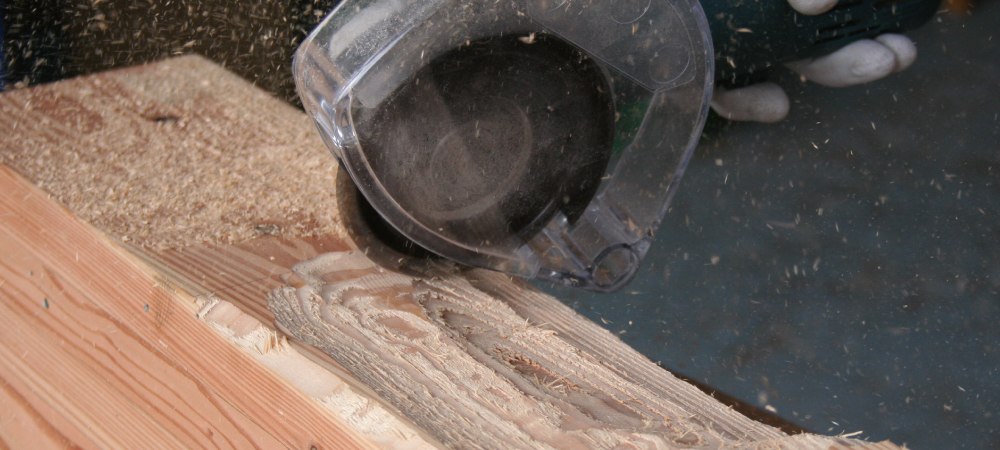

USE
Four replaceable tungsten carbide blade for soft and hardwoods
FEATURES
- Designed for round shape chamfering, curved surface cutting, straight cutting, grooving, mortising, rough carving.
- Circle replaceable tungsten carbide teeth ensure a long blade life.
Specifications
| Usage | Wood Hard wood |
|---|---|
| Material(s) | Body：High carbon steel・T.C.T. blade・Paint finishing Spacer：Molybdenum steel |
| Recommended tool(s) | Disc Grinder (Wheel Dia 100mm/125mm)(Angle Grinder) |
| RPm Range | Less than 15,000 rpm |
Sizes

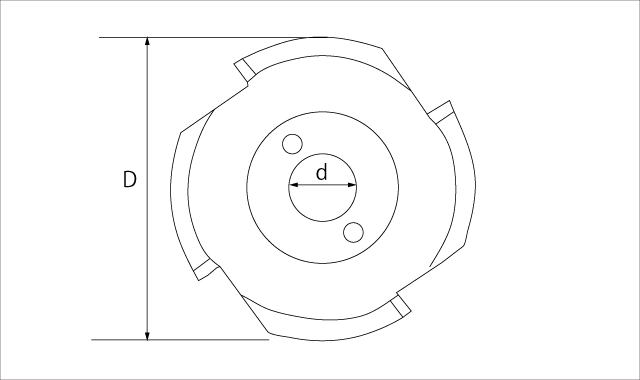

Outer：D Inner：d Unit：mm
| Product No. | Outer Dia | Inner Dia | Thickness of blades |
|---|---|---|---|
| 560 | 100 | 22 | 8 |
※When attaching the spacer, the inner diameter is 15mm.
Assembly

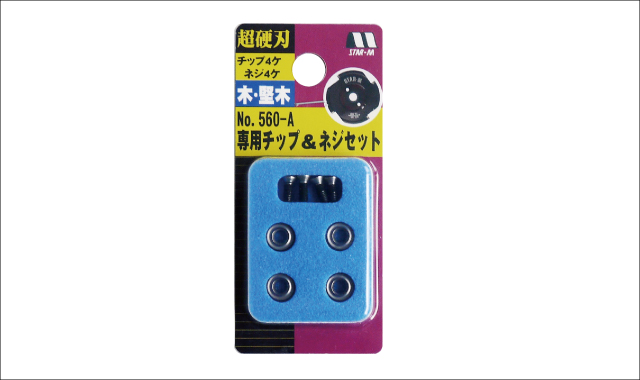

Replaceable T.C.T. Blade & Screws
| Product No. | Screw Size |
|---|---|
| 560-A | M3X8 |
※T.C.T. blade and screw are 4 each

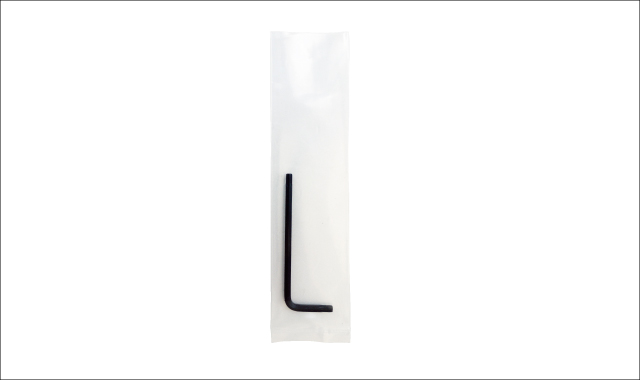

Fixed Wrench
| Product No. | Size |
|---|---|
| 560-B | T10 |

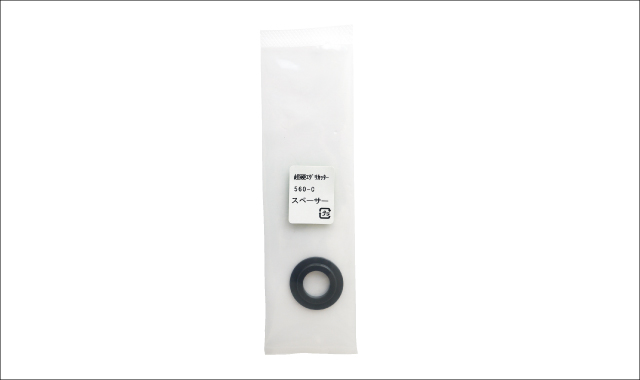

Spacer
Unit：mm
| Product No. | Inner Size |
|---|---|
| 560-C | 15 |
Bits of Knowledge

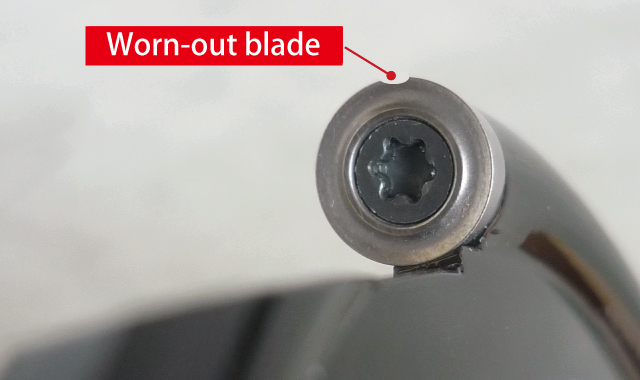

- When worn-out, please rotate to Non-wear face.

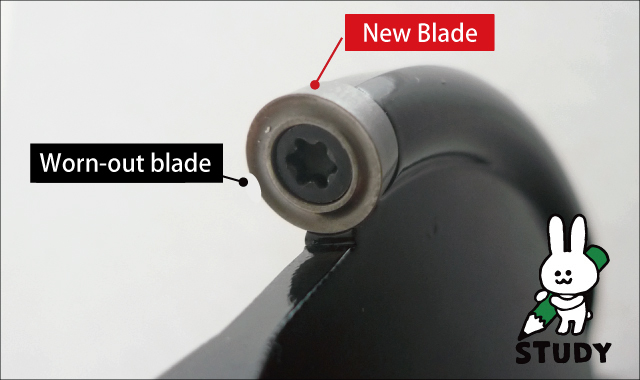

①When the blade worn-out, rotate to non-wear-side.

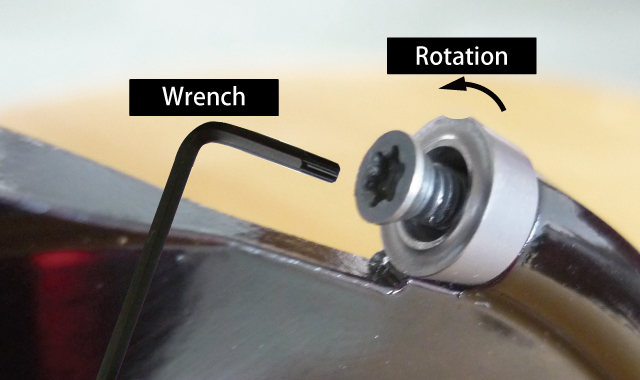

②Loosen the screw with a fixed wrench. Please rotate to new blade face.
③Tighten the screws with a fixed wrench.
Help
How to use

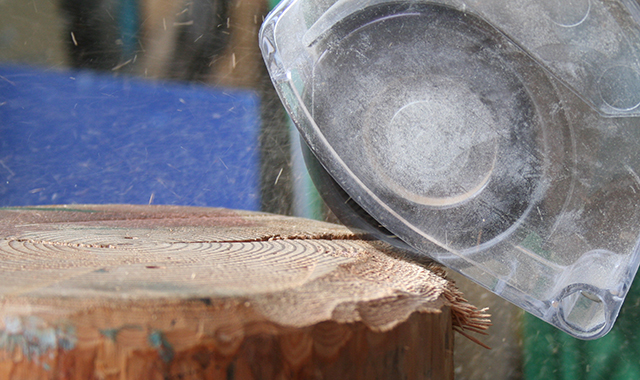

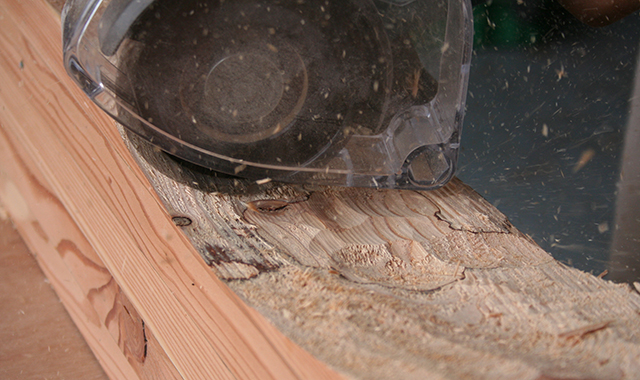

Round shape chamfering
Curved surface cutting

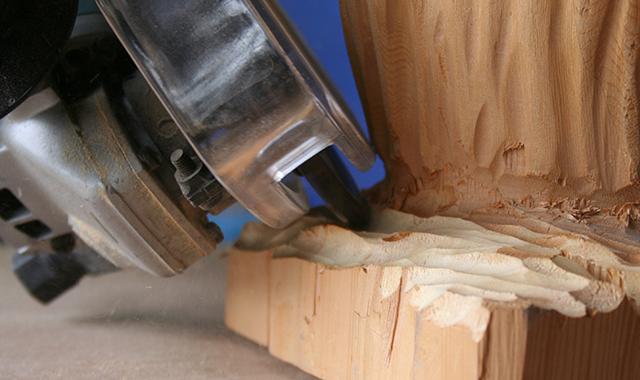

Rough carving

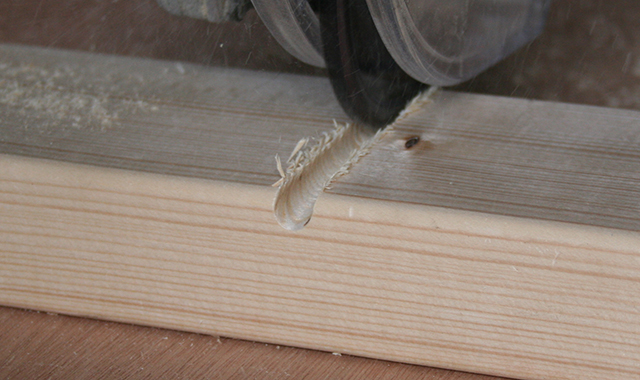

Grooving

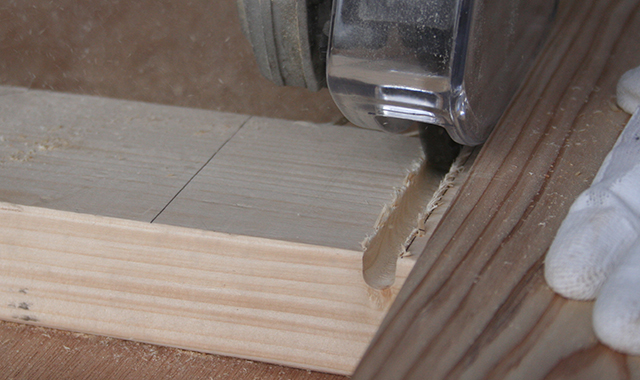

Mortising

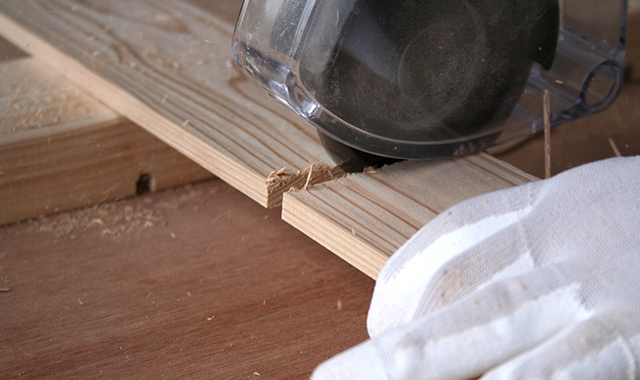

Straight cutting
