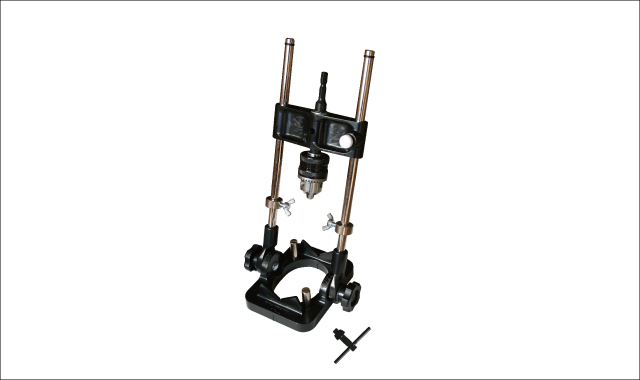

No.50A Drill Stand

Drill Stand

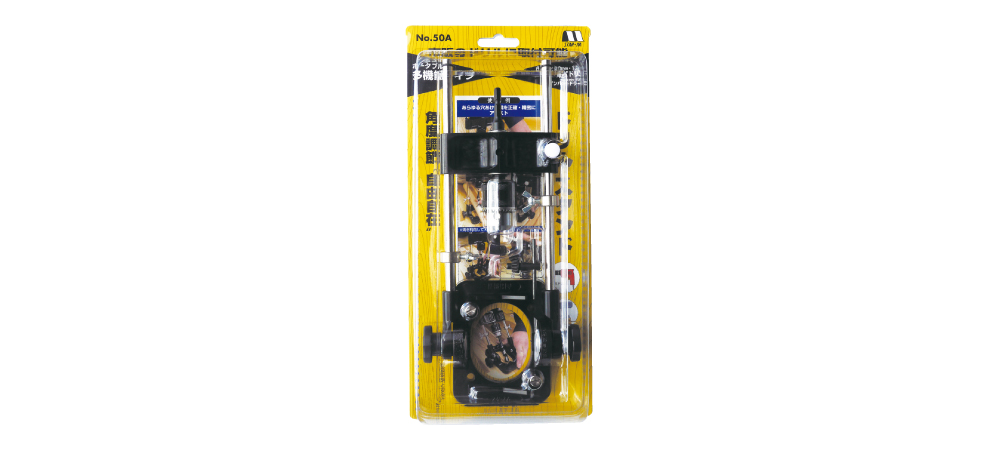

Package Presentation
Example of use

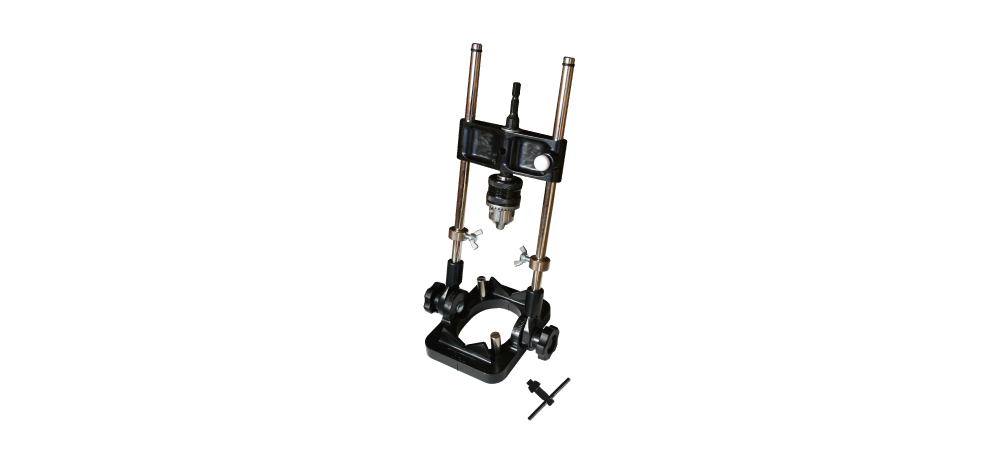

Drill Stand
Package Presentation

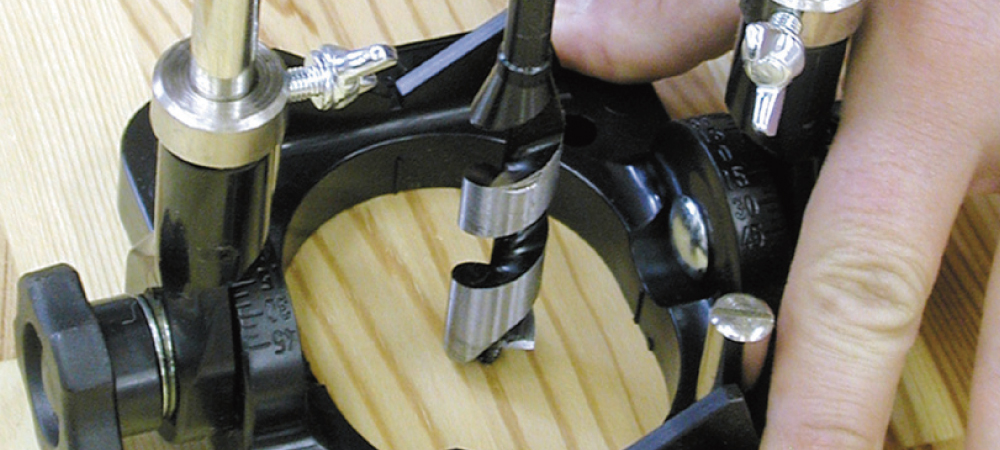

Example of use
USE

Multi-purpose drill accessory.

FEATURES

Specifications

Material(s) Body:High Carbon Steel
Base&Holder:ABS
Recommended tool(s) Quick Change Impact Driver (over 14.4v)
Cordless Drill (over 14.4v)
Electric Power Drill
Technical data Max.Diameter:54mm
Max.Overall Length:210mm
Shank Shape:1.5mm up to 10mm
RPm Range Less than 3,000 rpm
Shank Shape Hexagon:Hexagon
CautionCaution
  • Do not over-load as it may result in serious breakage.

Sizes

Drill Stand

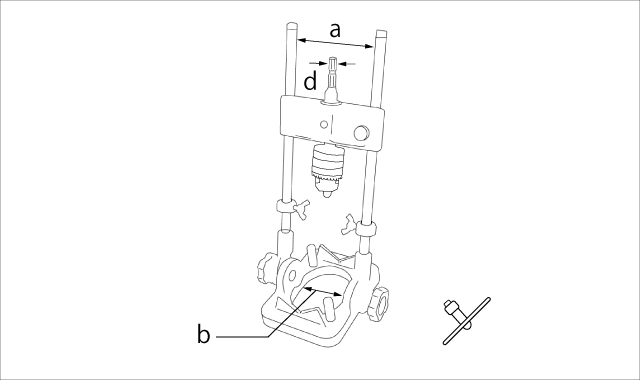

Size

Width of Slide bar:a Inner Dia of Base:b Shank Shape:d Unit:mm

Product No. Width of Slide bar Inner Dia of Base Shank Shape
50A 80 57
6.35Hexagon

QTY(Inner Box):3pcs

Aseembly

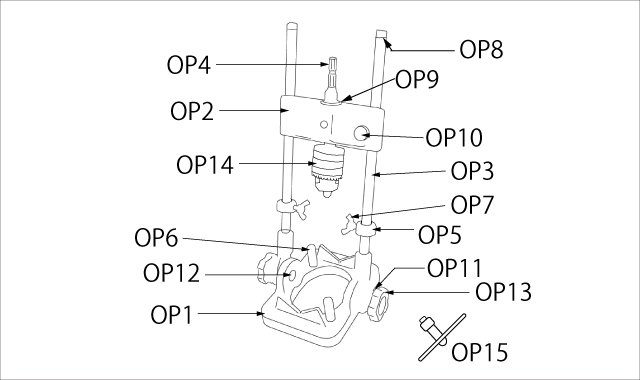

Name of each part of the drill stand
Base
Slide holder
Slide bar
Main shaft
Stopper
Lock pin
Wing bolt
O-ring
Shaft stopper ring
Screw
Spacer
Bolt
Knob
Drill chuck
Chuck key
Product No. Parts Name

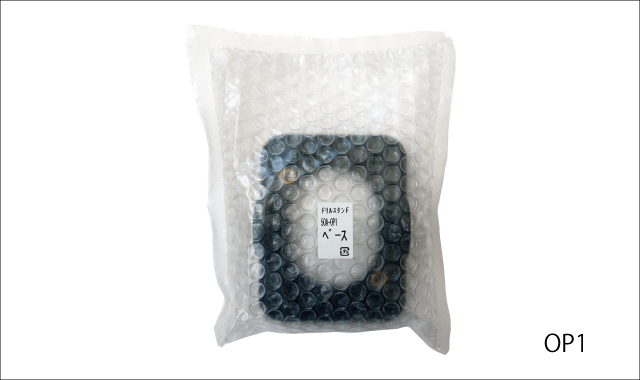

50A-OP1 Base

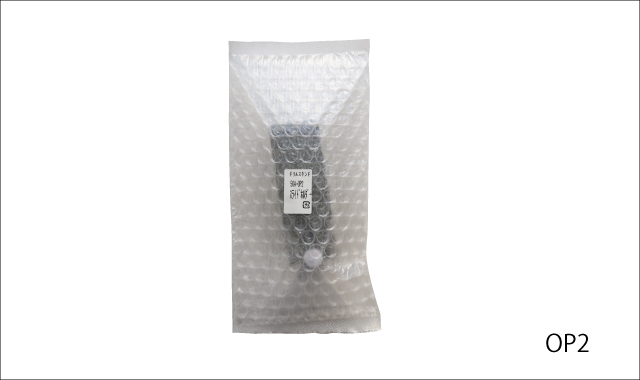

50A-OP2 Slide holder(with Screw)

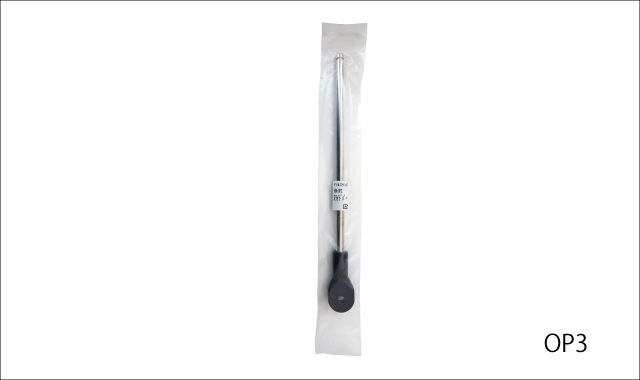

50A-OP3 Slide bar

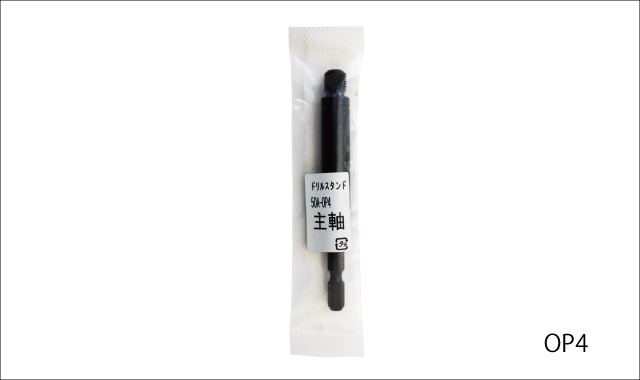

50A-OP4 Main shaft

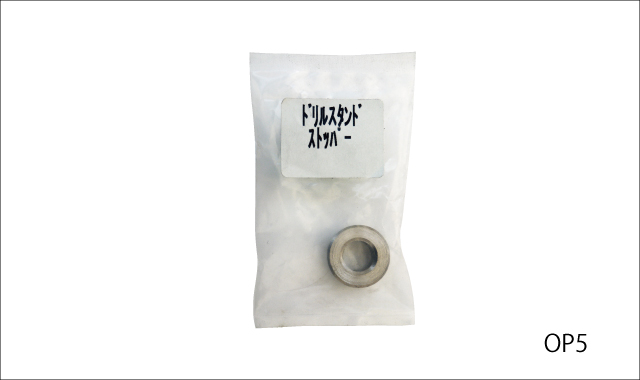

50A-OP5 Stopper

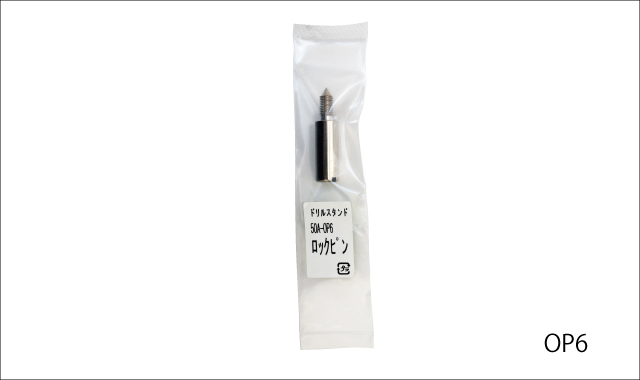

50A-OP6 Lock pin

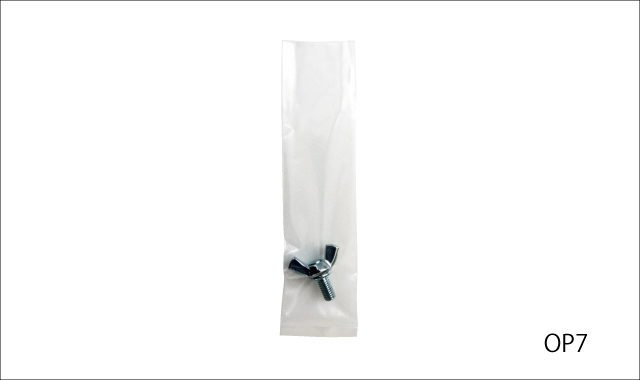

50A-OP7 Wing bolt

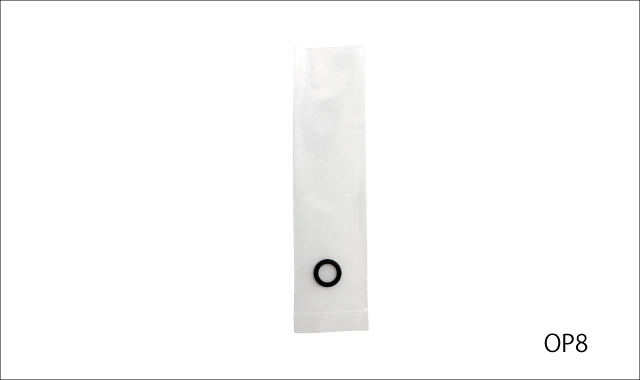

50A-OP8 O-ring

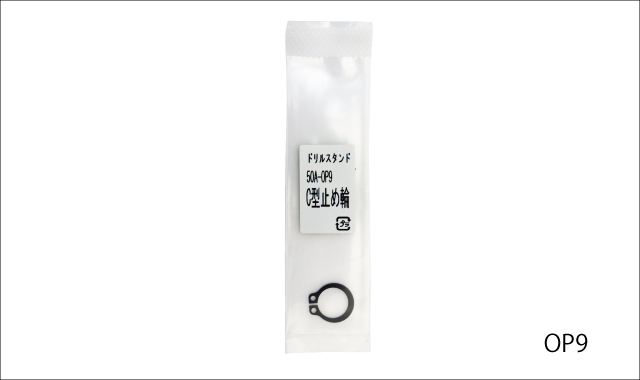

50A-OP9 Shaft stopper ring

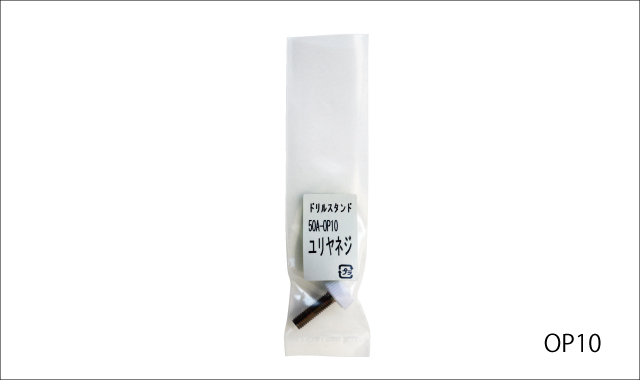

50A-OP10 Screw
50A-OP11 Spacer

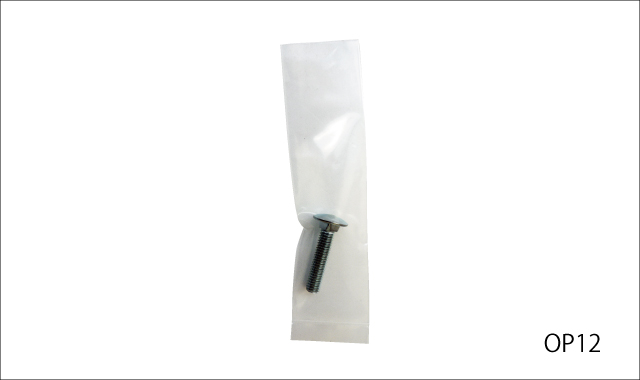

50A-OP12 Bolt

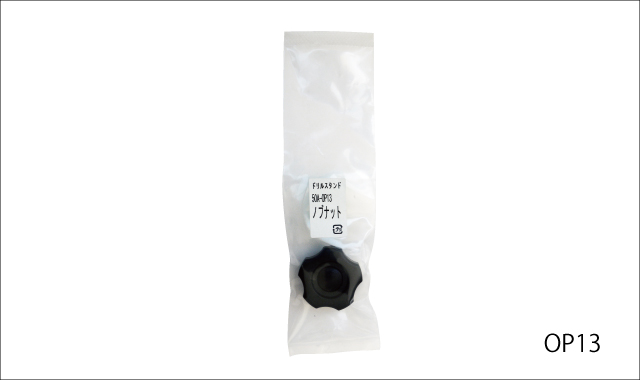

50A-OP13 Knob

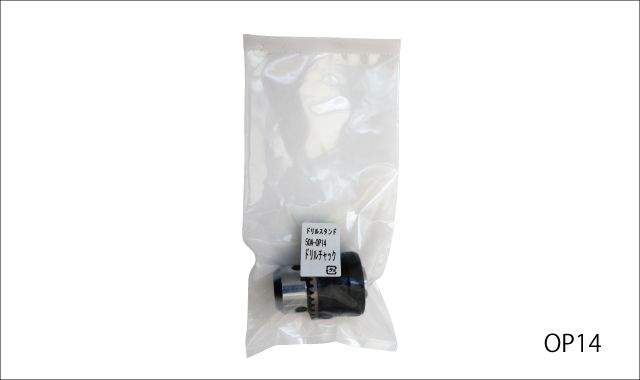

50A-OP14 Drill chuck

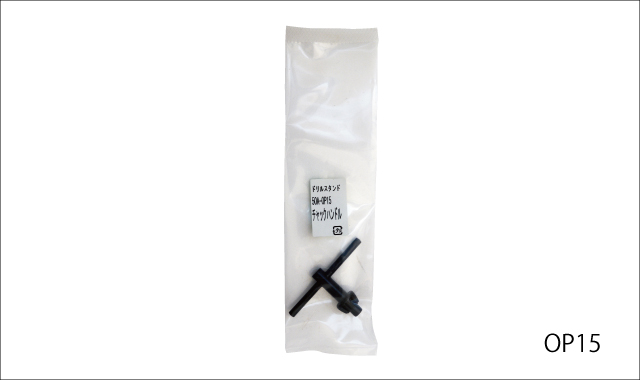

50A-OP15 Chuck key

Bits of knowledge

Q&A

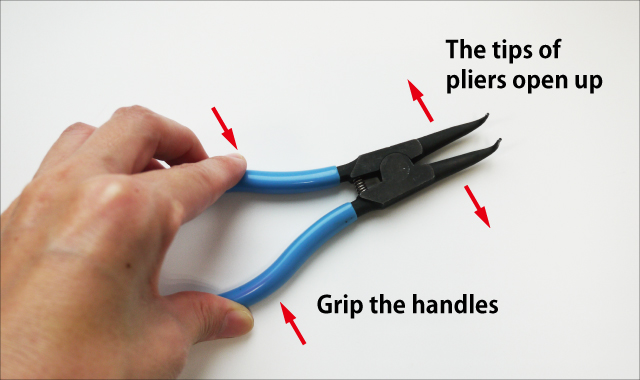

Shaft stopper ring does not come out.

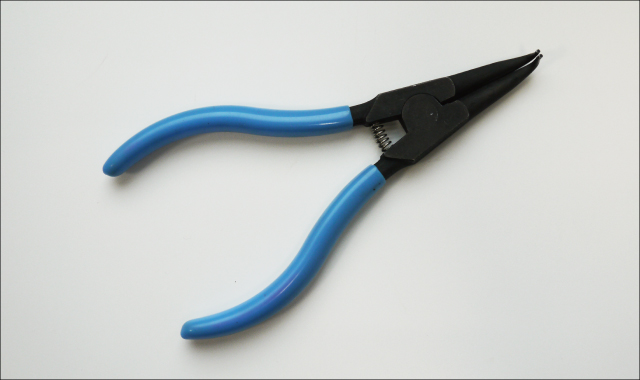

It can be removed using outer snap ring pliers.

Snapring flyer
Grip the grip
I don't know how to remove the chuck from the Drill Stand

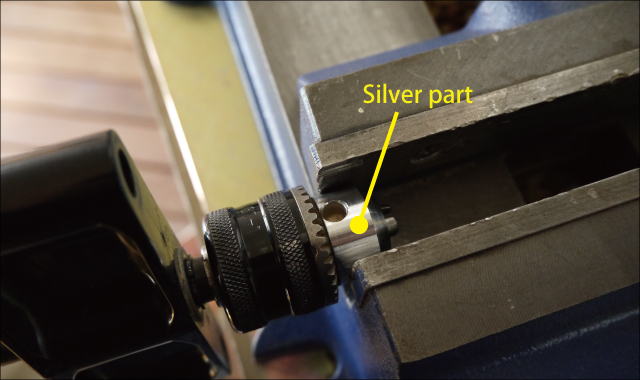

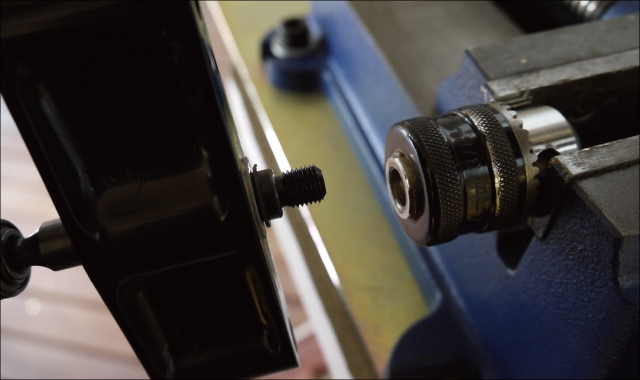

When removing a Drill chuck from the Drill stand, secure the silver part firmly with a vise as per the below left picture.
Secure a main shaft with a Quick Change (Impact) Driver and rotate it in reserve to remove the Drill chuck.

remove the drill chuck
remove the drill chuck

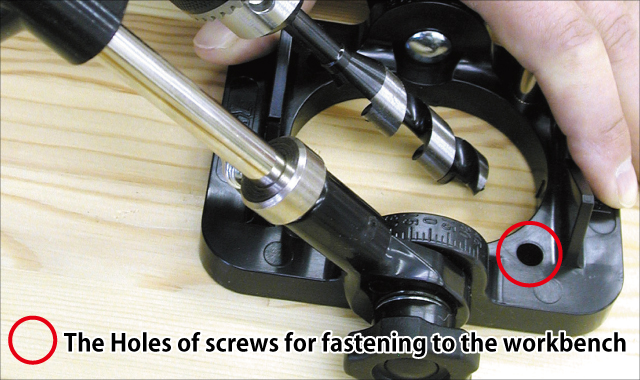

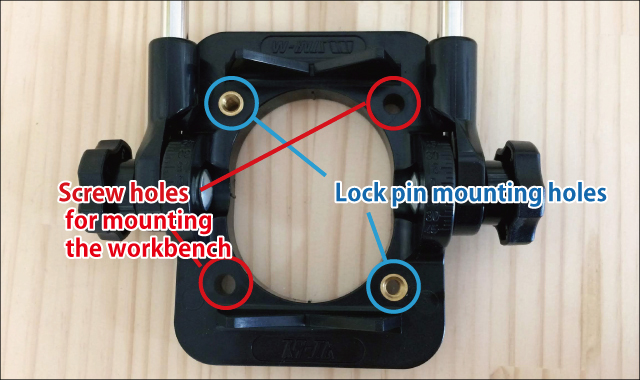

Which are the screw holes for fastening to the workbench or the holes for the lock pins ?
Two location holes are installed with the lock pins.

Base

Help

How to use

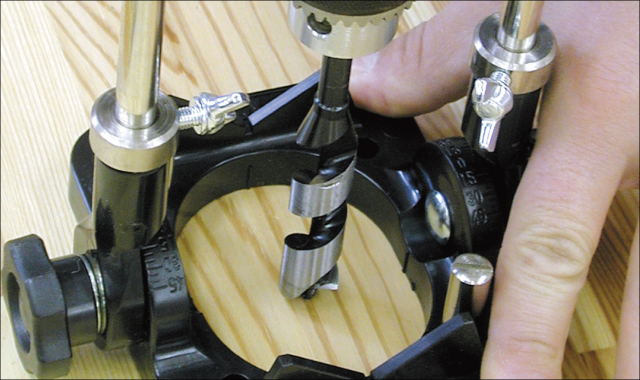

straight holes

Straight holes

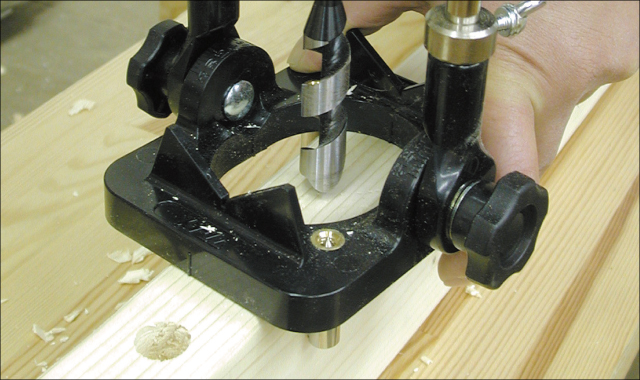

Center holes and dowel holes with a lock pin

Center holes and Dowel holes with a lock pin

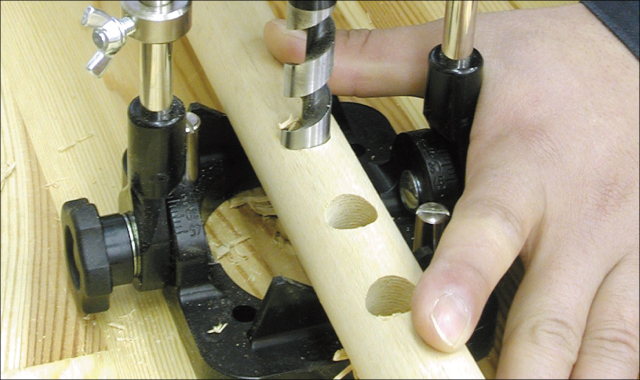

Round bar

Round bar processing with V groove

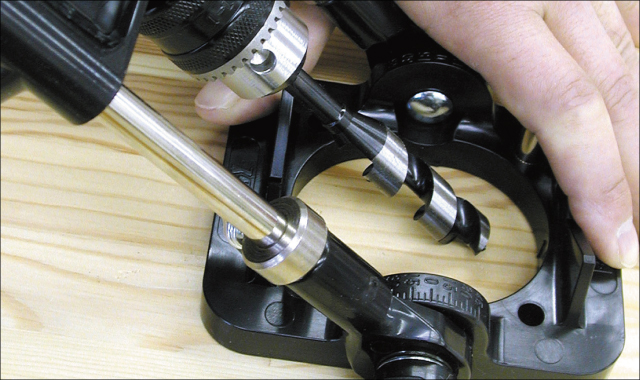

Angle pocket holes

Angled pocket holes

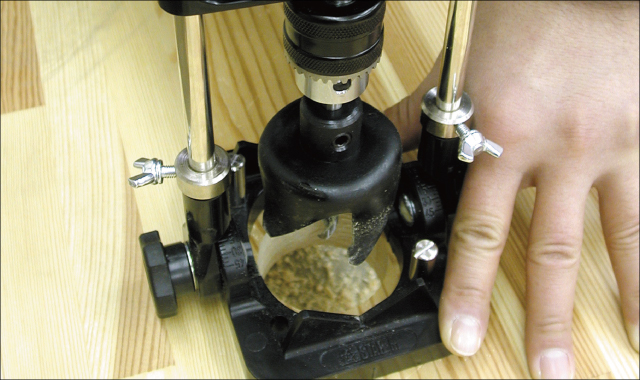

For locks

For Locks

For Wooden plugs

For Wooden plugs
