No.12/12T Cup Type Lock Auger
USE
Used exclusively for fixing door handle
FEATURES
- This is a special drill for installing exclusively for fixing door locks in entrance halls and in rooms.
- T.C.T. Cup type has excellent sharpness and durability.
- The hole saw type makes it easy to remove the wood chips after drilling.
Specifications
| Usage | 【12・12A】 Wood 【12T】 Wood Hard Wood |
|---|---|
| Material(s) | 【12・12A】 High carbon steel 【12T】 High carbon steel with T.C.T. |
| Recommended tool(s) | Electric Power Drill |
| RPm Range | Less than 1,500 rpm |
| Shank Shape |  ：Three Flats  ：Hexagon |
Sizes

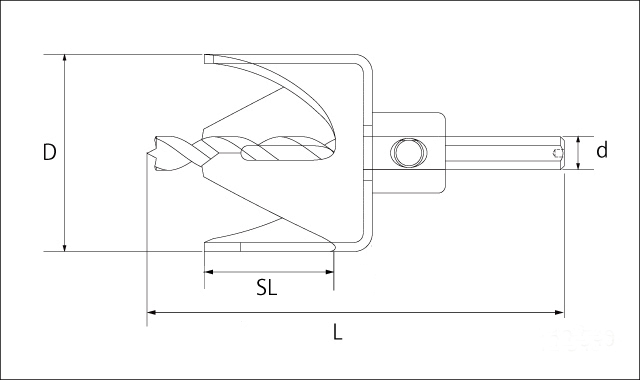

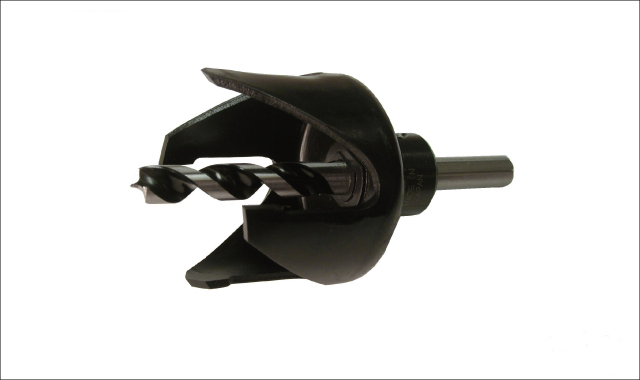

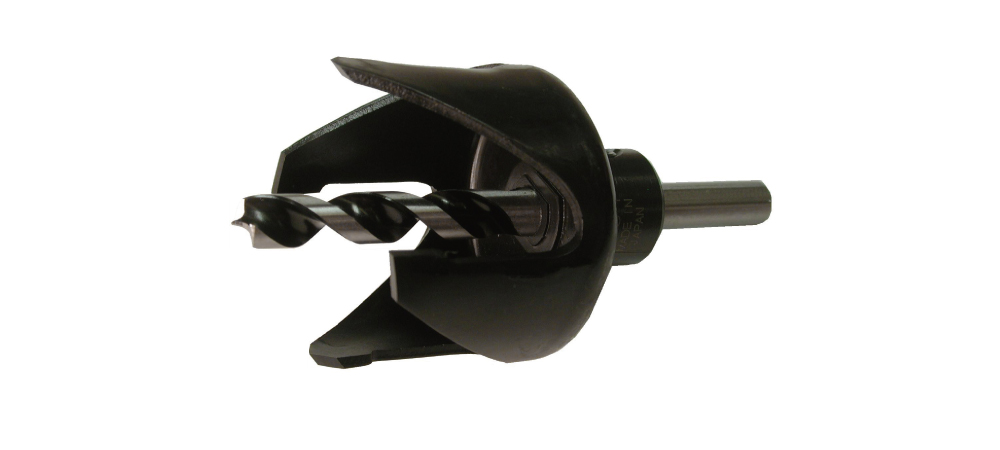

No.12 Cup Type Lock Auger
Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 12-540 | 54 | 110 | 40 |
9 |

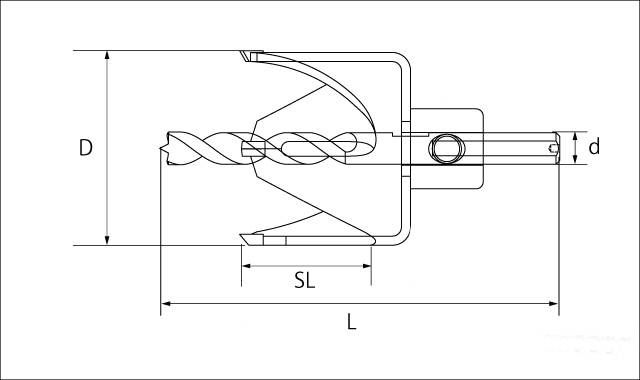

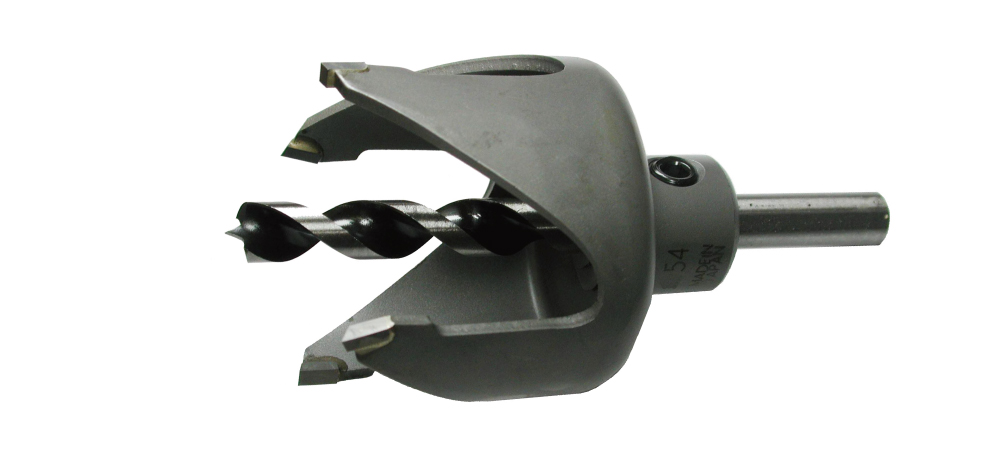

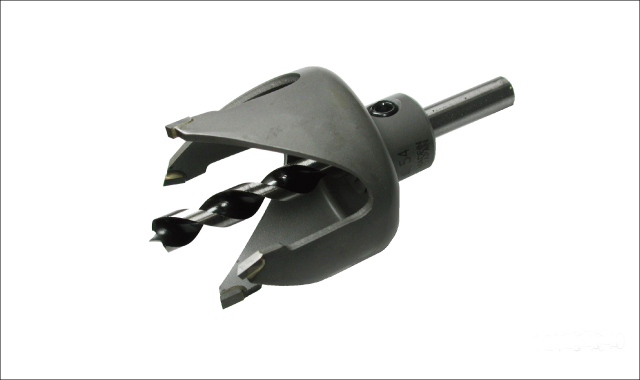

No.12T T.C.T. Cup Type Lock Auger
Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 12T-540 | 54 | 110 | 40 |
9 |
No.12A Cup Type Lock Auger Set
Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 12A | Cup Type 54 | 110 | 40 |
9 |

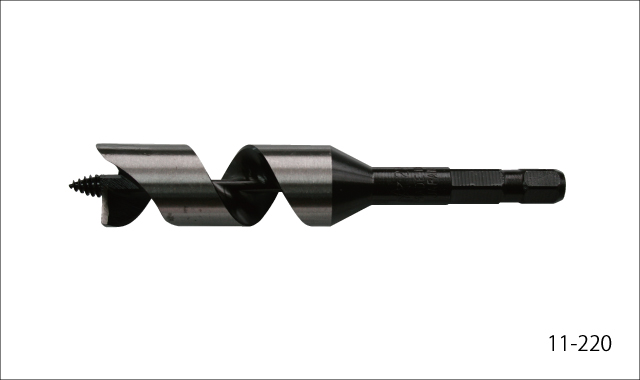

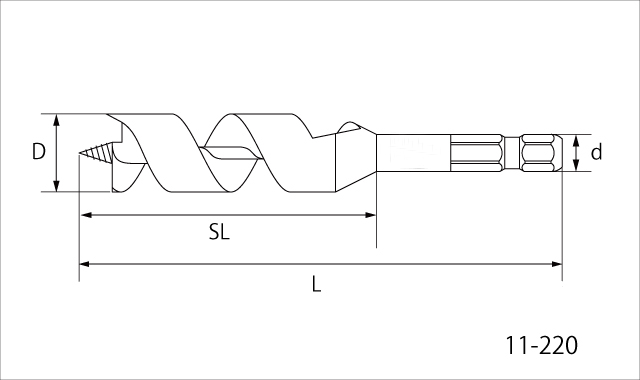

| Drill Bit 22 | 130 | 80 |
10 |
Assembly

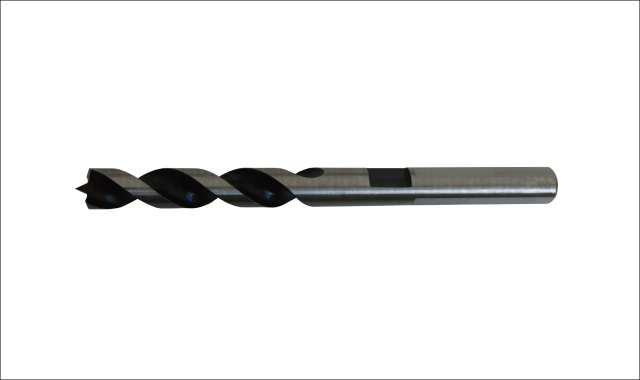

Center Drill

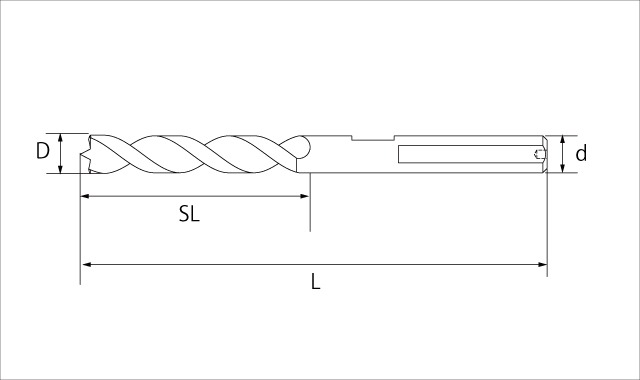

Size：D Overall Length：L Spiral Length：SL Shank Shape：d / Unit：mm
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 12-CD | 9 | 110 | 55 |
9 |
