No.4970　Neo Sharp

Specifications

Usage	Wood veneer edge banding tape
Material(s)	Body：ABS Blade：High Carbon Steel Clip：Acrylic Sheet metal plate：Stainless
Caution	When sliding, slide the sheet metal plate firmly along the base material. Please note that it may be scratched if used at an angle or in a floating state.

Sizes

Overall Length：L　Height：H　Width：W　Unit：mm

Product No.	Overall Length	Width	Height
4970	42	56	41

QTY(Inner Box)：6pcs

Assembly

Replaceable Blade（with screws）

Product No.
4970-K

QTY(Inner Box)：6pcs

Bits of knowledge

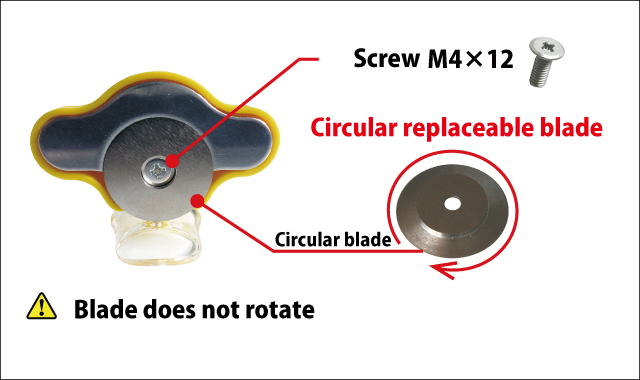

• The blade is circular replaceable type 360 degrees.


  The circular blade is 360 degrees around

  The circular blade can be used 360 degrees. Loosen the fixing screw and rotate the blade a little to fit the unused part and retighten the fixing screw.

Help

How to use

Firmly pinch the protruding veneer tape between the clip and the blade (circular blade), and slide it over the base metal.
