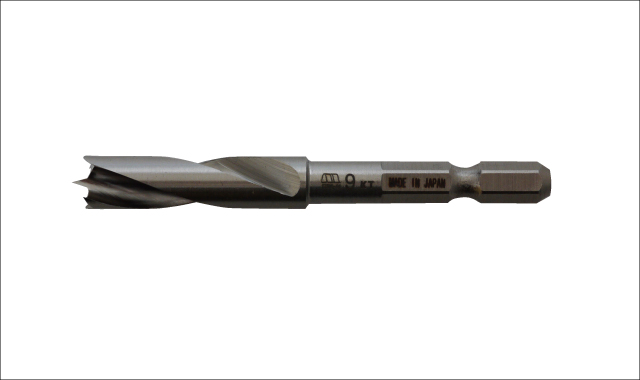

No.601　Multi Borer

Specifications

Usage	Wood Hard Wood Bamboo Rubber Acrylic board PVC
Material(s)	High Cabon Steel
Recommended tool(s)	Quick Change Impact Driver (over14.4v) Cordless Drill (over 14.4v) Electric Power Drill Drill Press Machine
RPm Range	Less than 3,000 rpm ※Drilling holes in resin 15 mm or more：Less than 1,300～3,000 rpm
Shank Shape	：Hexagon
Caution	We recommended placing a splice plate for drilling to the resin material.

Sizes

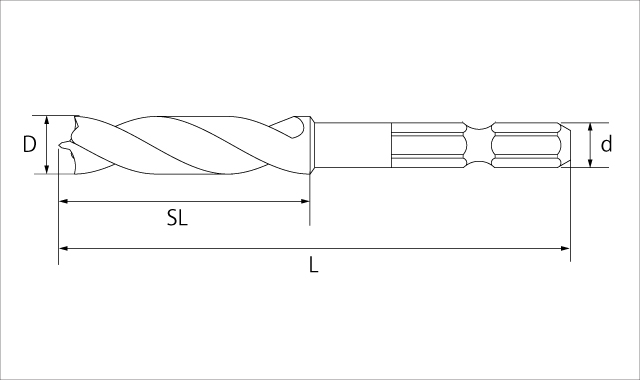

Size：D　Overall Length：L　Spiral Length：SL　Shank Shape：d　Unit：mm

Product No.	Size	Overall Length	Spiral Length	Shank Shape
601-030	3	80	35	6.35
601-035	3.5	80	35	6.35
601-040	4	80	35	6.35
601-045	4.5	80	35	6.35
601-050	5	80	35	6.35
601-055	5.5	80	35	6.35
601-060	6	80	35	6.35
601-065	6.5	80	35	6.35
601-070	7	80	35	6.35
601-075	7.5	80	40	6.35
601-080	8	80	40	6.35
601-085	8.5	80	40	6.35
601-090	9	80	40	6.35
601-095	9.5	80	40	6.35
601-100	10	80	40	6.35
601-105	10.5	80	40	6.35
601-110	11	80	40	6.35
601-115	11.5	80	40	6.35
601-120	12	80	40	6.35
601-150	15	116	66	6.35
601-180	18	116	66	6.35
601-210	21	125	75	6.35

QTY(Inner Box)：6pcs

Custom Auger Bit

Any Length and any size are available depending on your needs. We can make various Auger Bits to comply with your needs.

Bits of knowledge

• 0.5mm size is also suitable for drilling holes for dowels.

Help

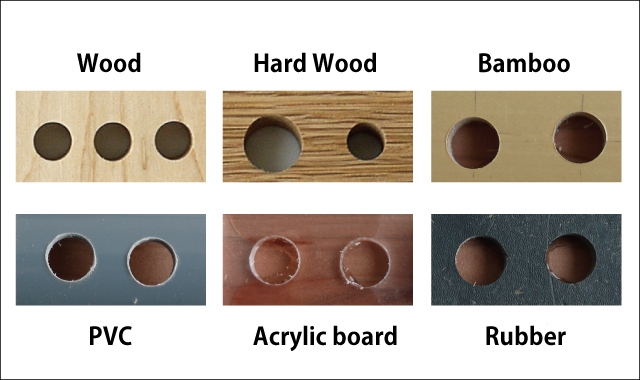

Can drill holes in various materials

Hard to break, hard to get burrs

The name is a bamboo drill, but it actually supports drilling holes in various materials. It is possible to drill holes not only in wood but also in acrylic, which is generally said to be fragile. Easy to recognize its sharpenes of the drilling, not only for drilling into wood & bamboo without burrs.

How to make Bamboo Light

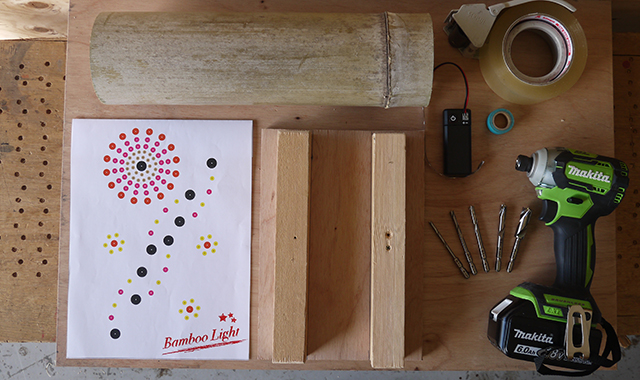

【Things to prepare】

• Bamboo
• LED Light
• Design paper
• Transparent tape
• Masking tape
• Stand for fixing
• Cordless Drill or Quick Change Impact Driver
• Multi Borer（The size depends on the design）

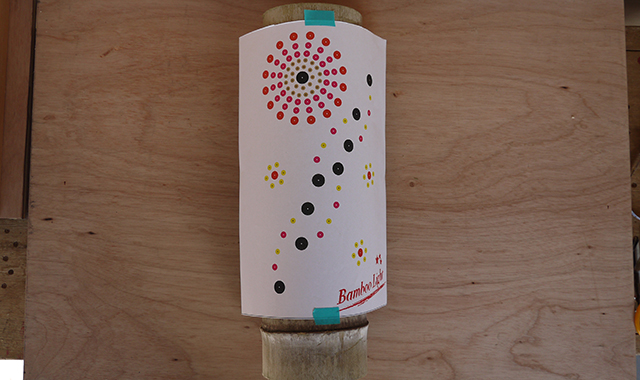

①Temporarily fix the design paper to the bamboo with masking tape. The design can be drawn directly on bamboo with chalk.

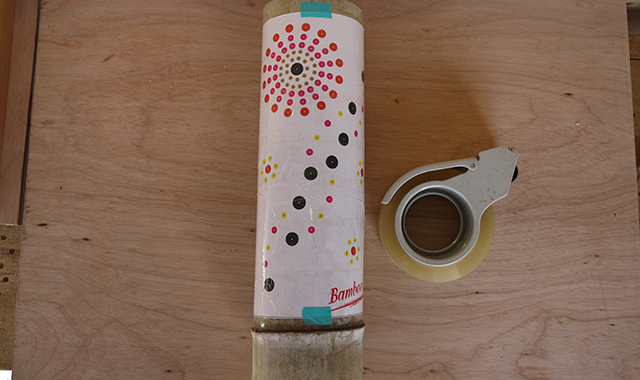

②Attach the design paper to the bamboo with transparent tape. Apply the tape to the entire surface, not only partially, but without any gaps.

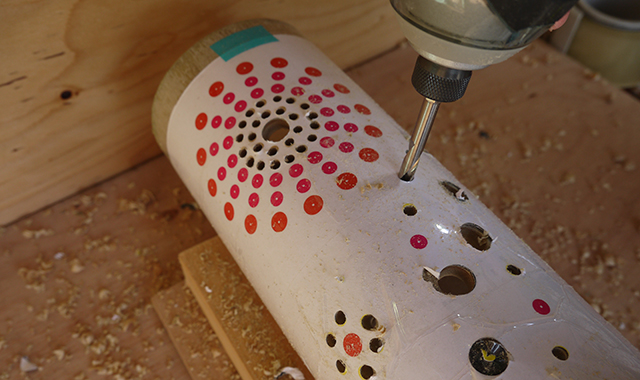

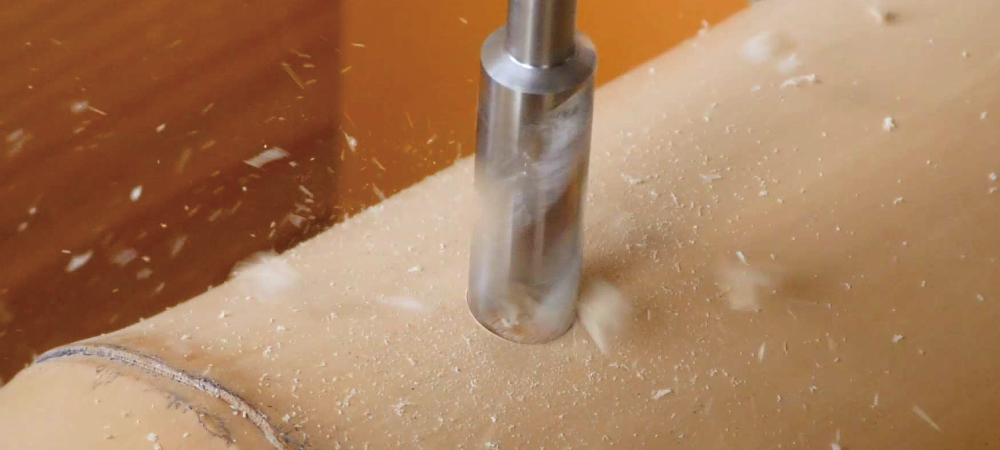

③Set the bamboo on the fixing table and make a hole with a bamboo drill. Please fix the bamboo firmly so that it does not move and make a hole.

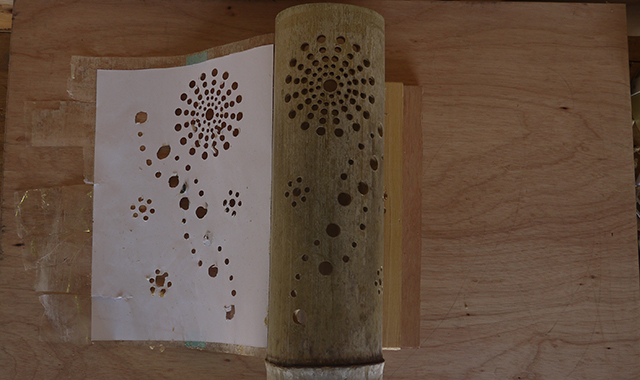

④After making the holes, remove the design paper.

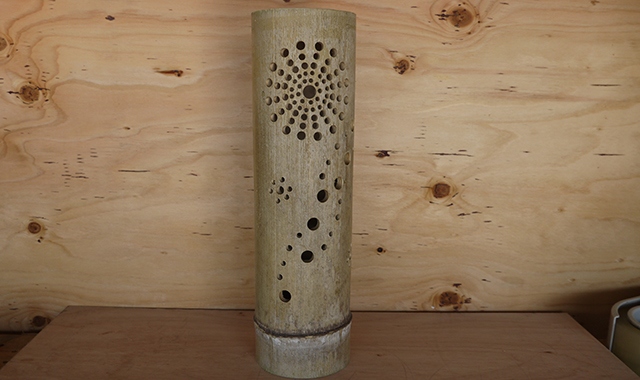

⑤After removing the chips cleanly, it is completed.

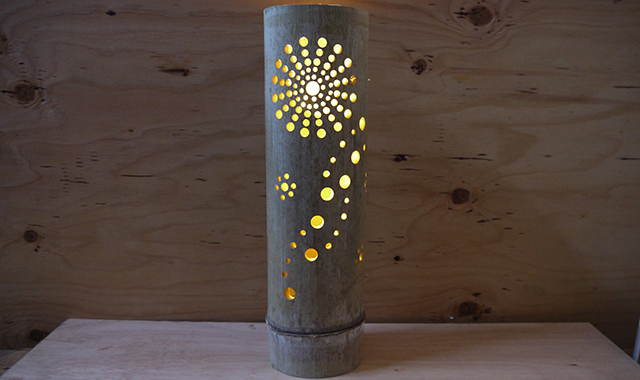

⑥Turn on the light.
　

Movie

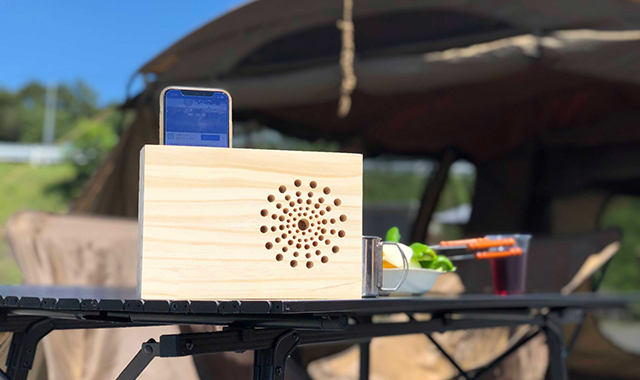

Let's make a wood speaker！

Let's enjoy the music!　Why don't you make your own original wood speakers that can be used both outdoors and indoors?

How to make wood speaker movie

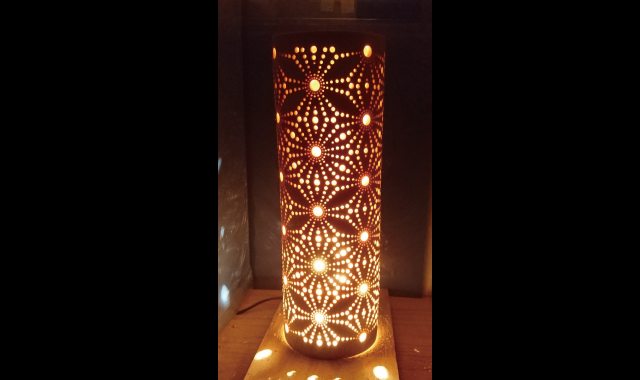

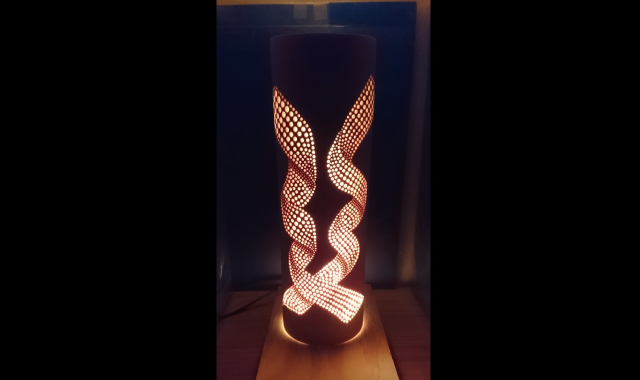

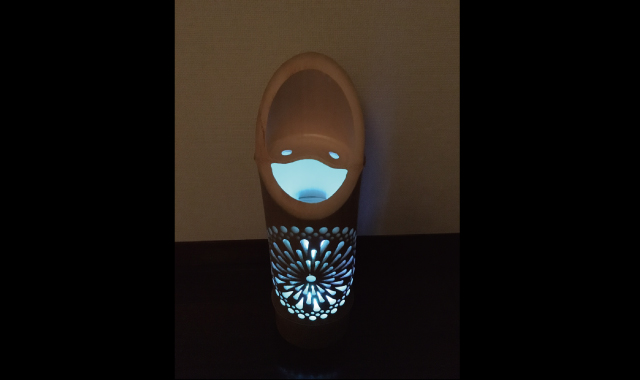

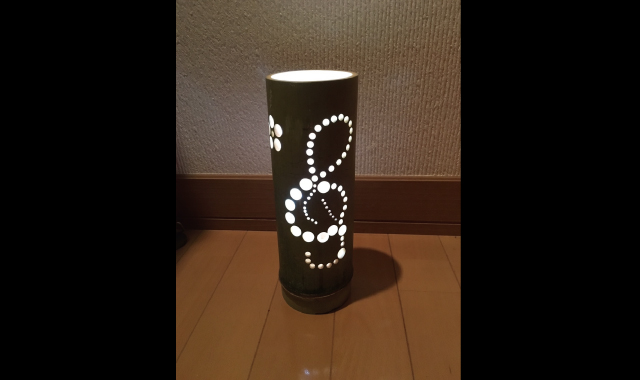

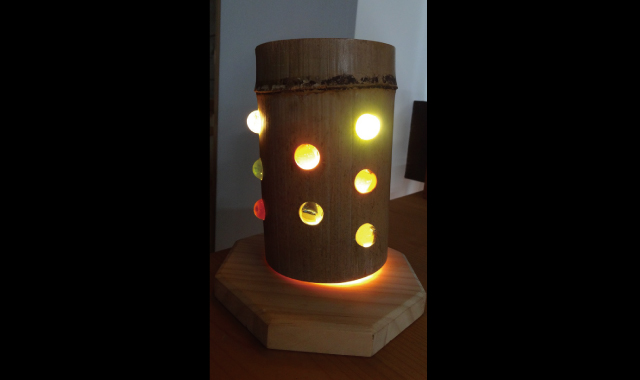

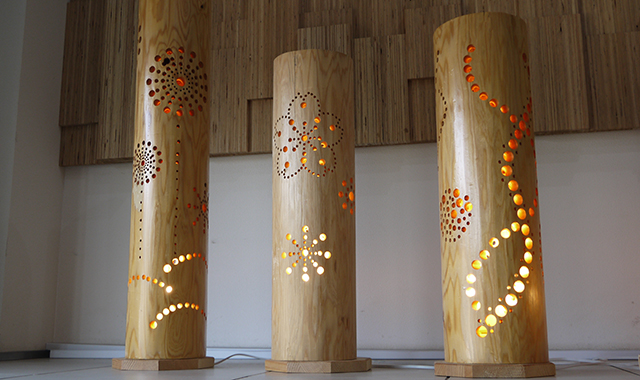

TAKEAKARI collection of works
