No.58X H.S.S. Countersink & Plug Cutter

H.S.S. Countersink & Plug cutter
Package Presentation
example of use
example of use
H.S.S. Countersink & Plug Cutter
Package Presentation
example of use
example of use
USE

Pre-drilling and countersink processing are performed with a countersink, and a wooden plug is made with a plug cutter.

FEATURES

Specifications

Usage Wood
Hard Wood
Wet Wood
Material(s) High Speed Steel
Recommended tool(s) Electric Power Drill
Cordless Drill (over 14.4v)
Quick Change Impact Driver (over 14.4v)
RPm Range Less than 3,000 rpm
Shank Shape Hexagon:Hexagon Round:Round

Sizes

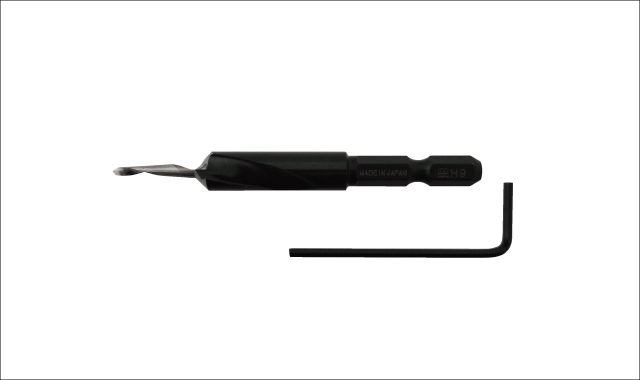

H.S.S. Countersink

H.S.S. countersink
size

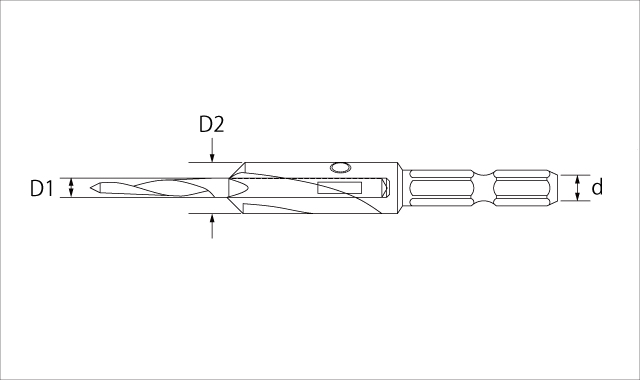

Size:D1×D2 Shank Shape:d Unit:mm

Product No. Size Shank Shape
58X-3090 3X9
6.35Hexagon
58X-3510 3.5X10
6.35Hexagon
58X-4105 4X10.5
6.35Hexagon

QTY(Inner Box):6pcs

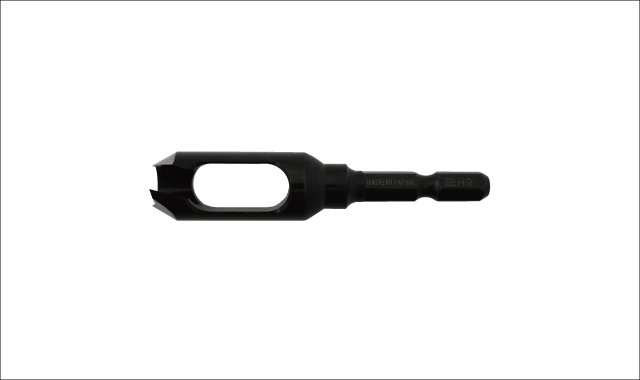

H.S.S. Plug Cutter

H.S.S. Plug Cutter
size

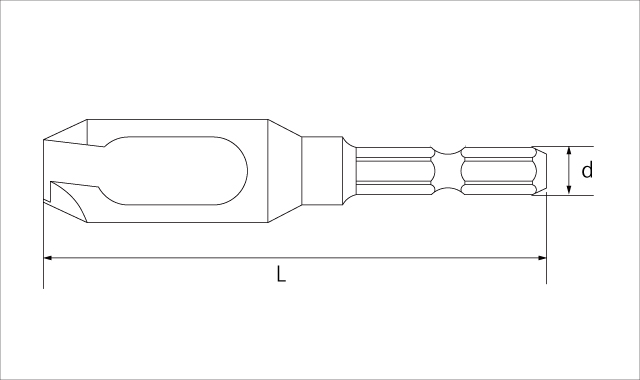

Overall Length:L Shank Shape:d Unit:mm

Product No. Size Overall Length Plug Max Length Shank Shape
58X-090 9 74 25
6.35Hexagon
58X-100 10 74 25
6.35Hexagon
58X-105 10.5 74 25
6.35Hexagon

QTY(Inner Box):6pcs

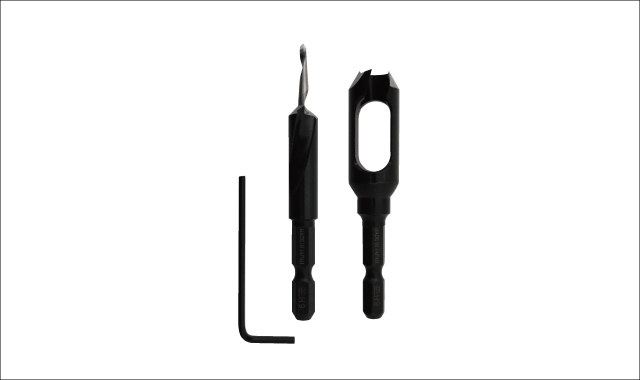

H.S.S. Countersink & Plug Cutter Set

H.S.S. Countersink & Plug Cutter
size

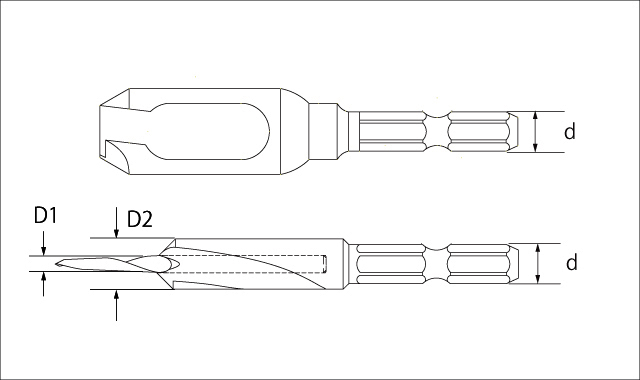

Size:Countersink(D1XD2)X Plug Cutter Shank Shape:d Unit:mm

Product No. Size Shank Shape
58X-S3090 3X9X9
6.35Hexagon
58X-S3510 3.5X10X10
6.35Hexagon
58X-S4105 4X10.5X10.5
6.35Hexagon

QTY(Inner Box):6pcs

Assembly

Inner Drill(Taper Point type)

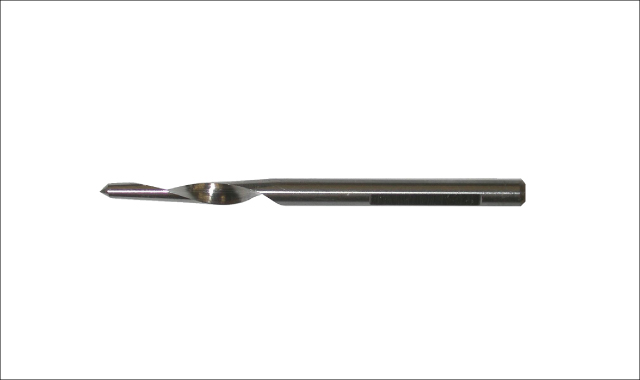

Inner Drill
size

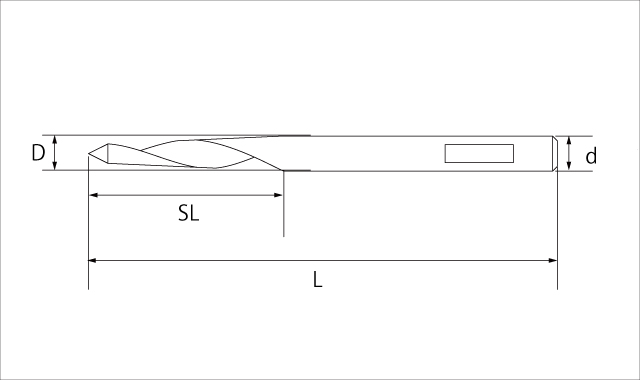

Size:D Overall Length:L Spiral Length:SL Shank Shape:d Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape
58X-CD030 3 48 20
3Round
58X-CD035 3.5 48 20
3.5Round
58X-CD040 4 48 20
4Round

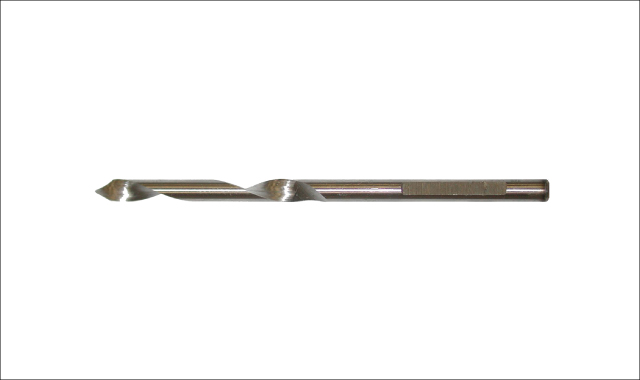

Inner Drill(Straight type)

Inner Drill
size

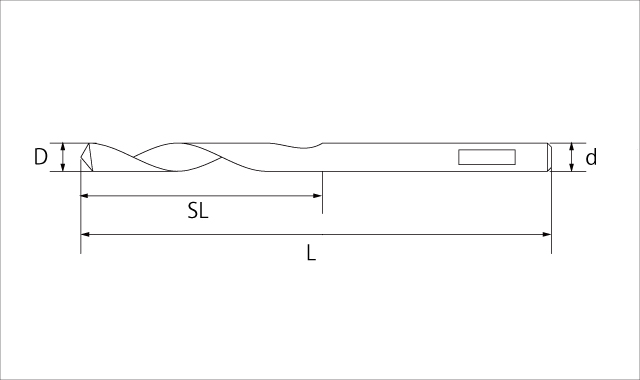

Size:D Overall Length:L Spiral Length:SL Shank Shape:d Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape
58X-STCD030 3 58 30
3Round
58X-STCD035 3.5 58 30
3.5Round
58X-STCD040 4 58 30
4Round

Counter Bore

Counter Bore
size

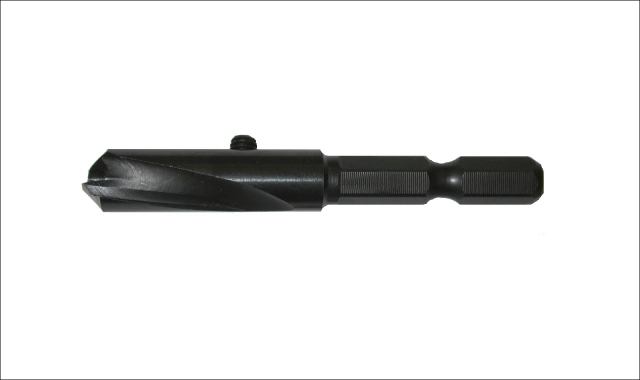

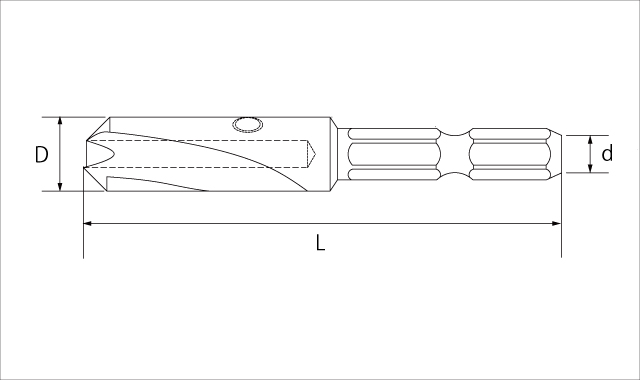

Size:D Overall Length:L Shank Shape:d Unit:mm

Product No. Size Overall Length Max Depth Shank Shape
58X-OD090 9 64 20
6.35Hexagon
58X-OD100 10 64 20
6.35Hexagon
58X-OD105 10.5 64 20
6.35Hexagon

Bits of knowledge

Q&A

The cork is worn out and I can't make it well.
When used with an Quick Change Impact driver, the cork may become tattered if the impact is applied too much. Try moving it up and down a little like in the video, as if you were inserting and removing the plug cutter. Also, soft wood such as cedar may not be able to remove the wood plug cleanly.

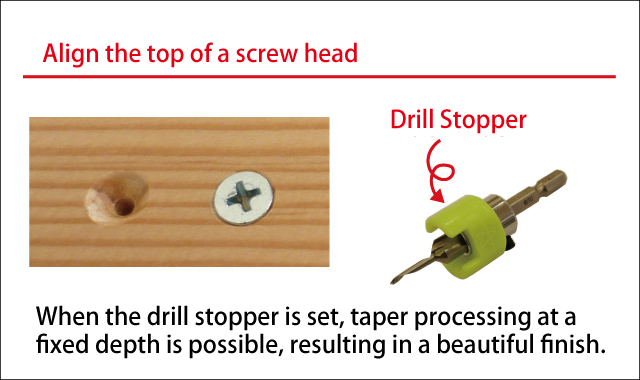

What is the size of the drill stopper that fits the countersink?
Choose the same size as the couter bore of the countersink. However, 3X8 cannot set an 8mm drill stopper.
The inner drill of the countersinker has broken off, but I can't pull it out because I can't grab the tip.

Inner Drill broke

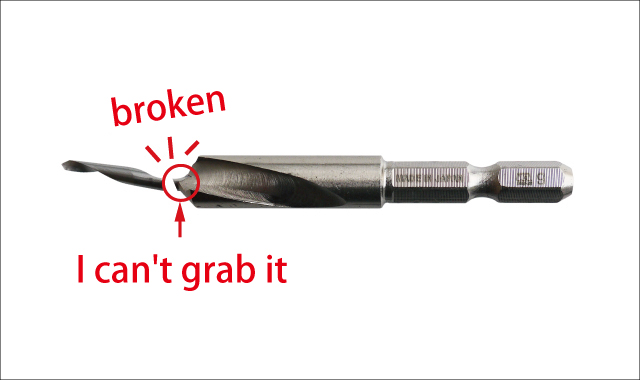

The inner drill has broken off, but the remaining part is too short to grab and pull out.

free hole

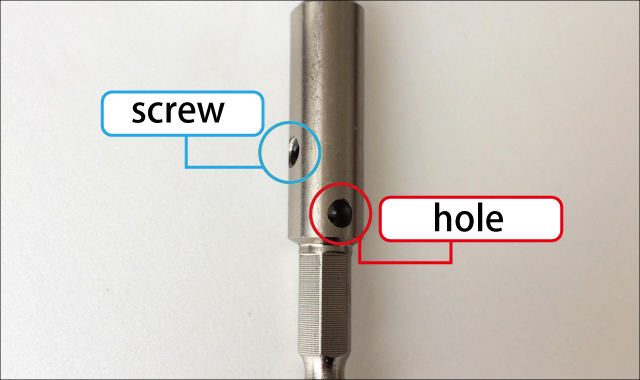

The blue circle is where the screws are fixed. The red circle is where the hole is drilled.

How to take out

release

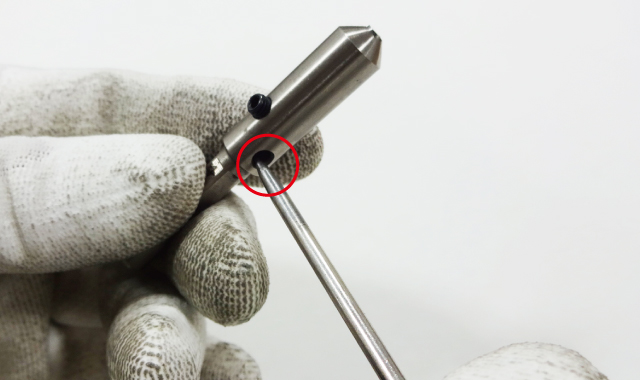

①Use the supplied hexagonal wrench to loosen the screws.

squeezes

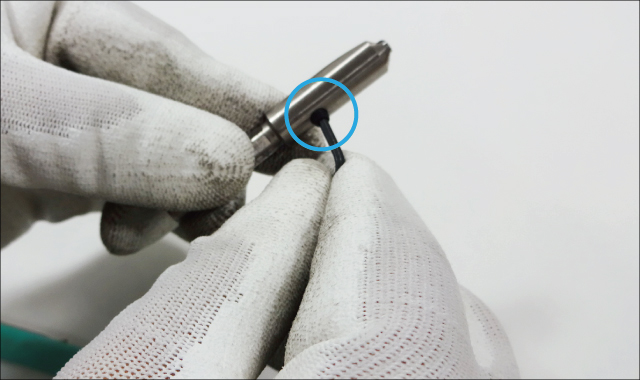

②Stick rod or pick squeezes from free hole.

cup and down

③Move the inserted object to raise the bottom of the inner drill, and the inner drill will come out.

pull out

④The inner drill will come out, so grab it and pull it out.

Help

How to use for Countersink

hole

Making countersink hole. (Standard working)

deep hole

Making deep hole to plug.

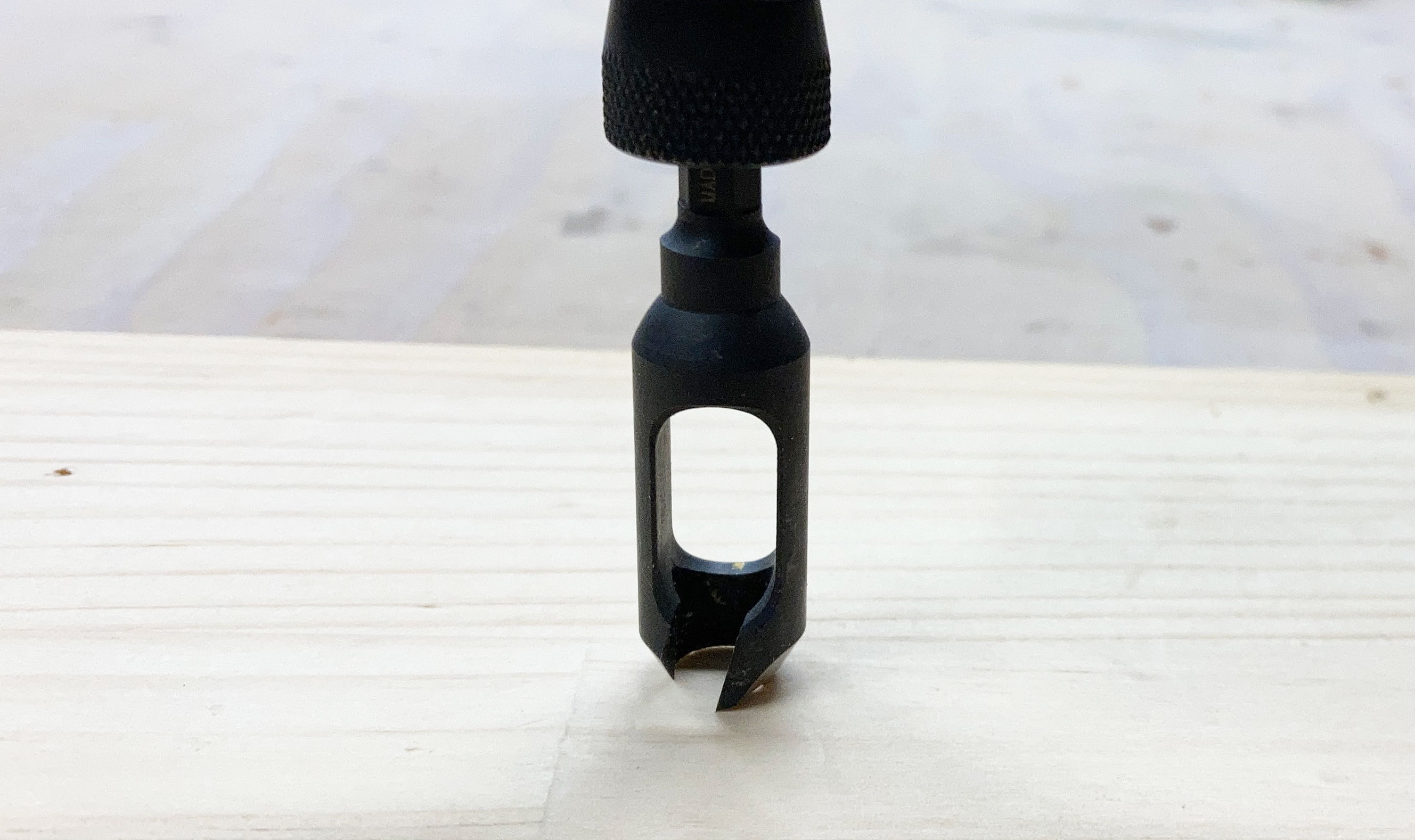

How to use for Plug Cutter

making plug wood

①Making Plug wood.
(applicable length = 15-20mm)

pick up the plug wood

②Pick up the plug wood depends on use rods or picks.

slight taper

③Making slight taper.

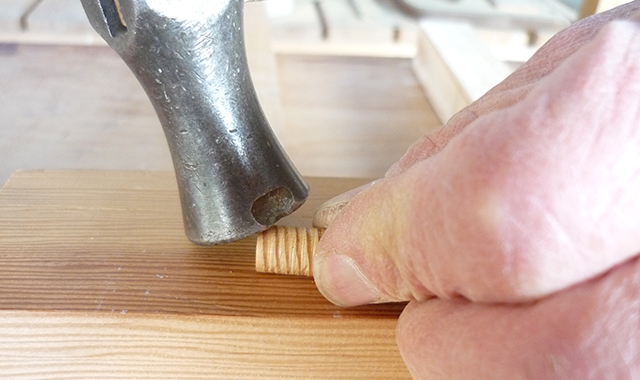

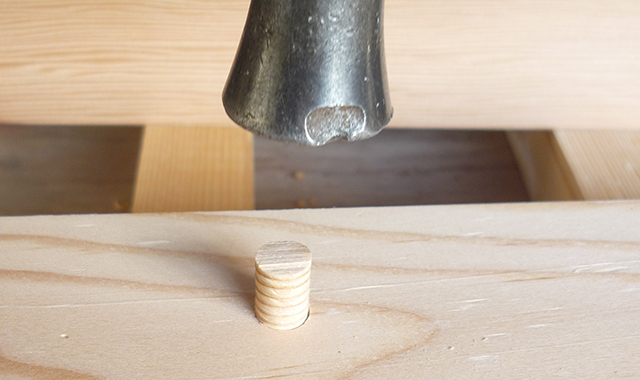

plugging by hammer

④Putting bonds in the hole and plugging by hammer.

cutting off

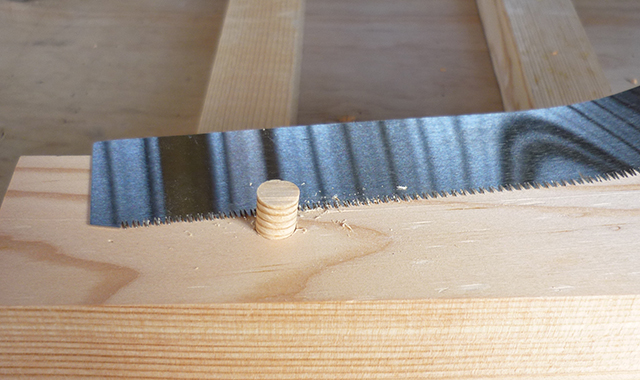

⑤Cutting off excess part by hand saw.

paper

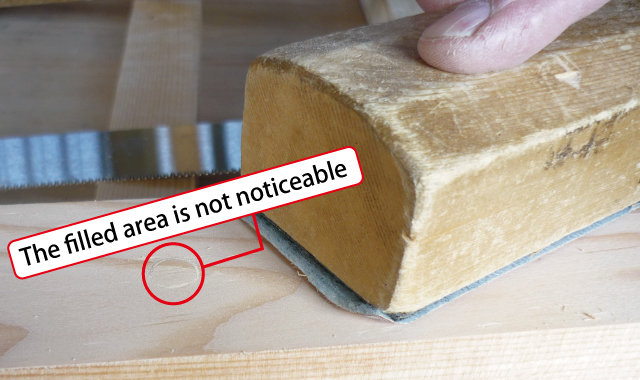

⑥Putting paper file completely.

Movie

Associated Product

Countersink&Plug Cutter
Drill stopper
