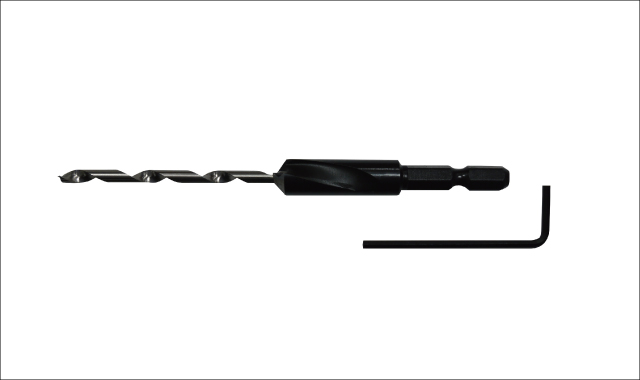

No.58XW H.S.S. Countersink for Wood Deck

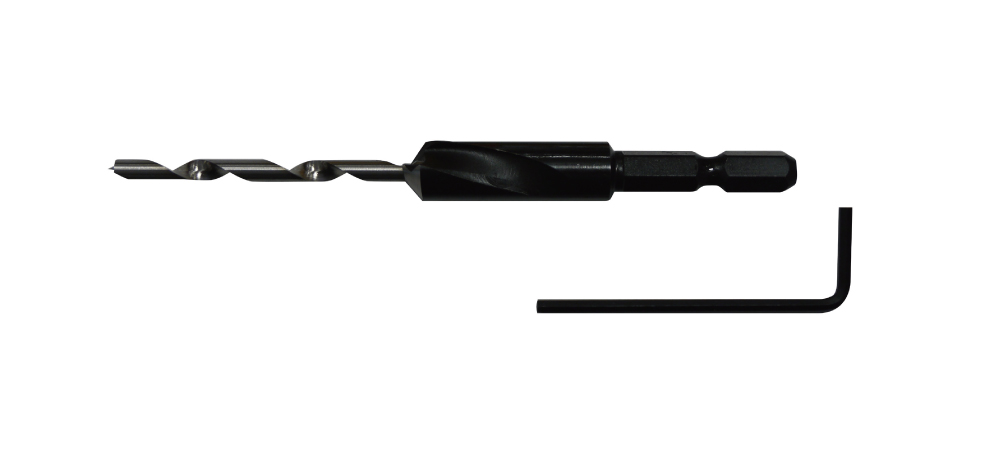

H.S.S. Countersink for Wood Deck
Package Presentation

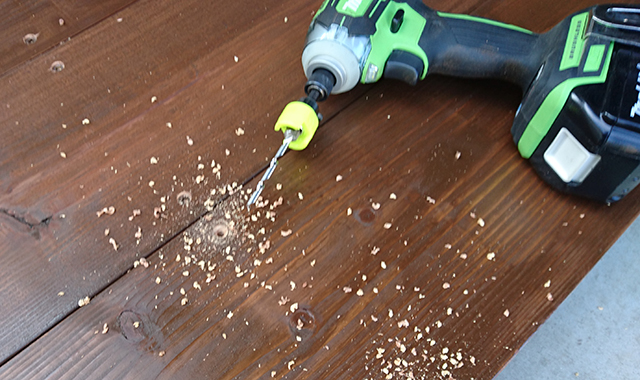

Example of use
H.S.S. Countersink for Wood Deck

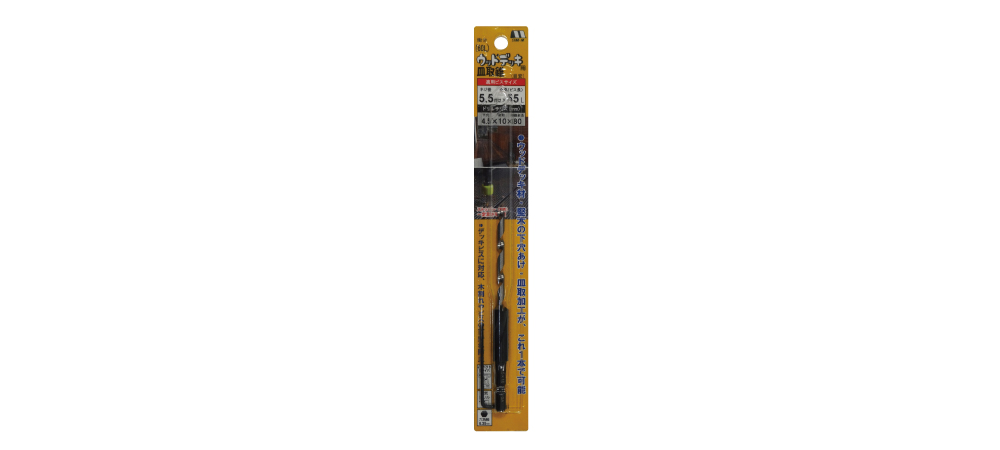

Package Presentation
Example of use
USE

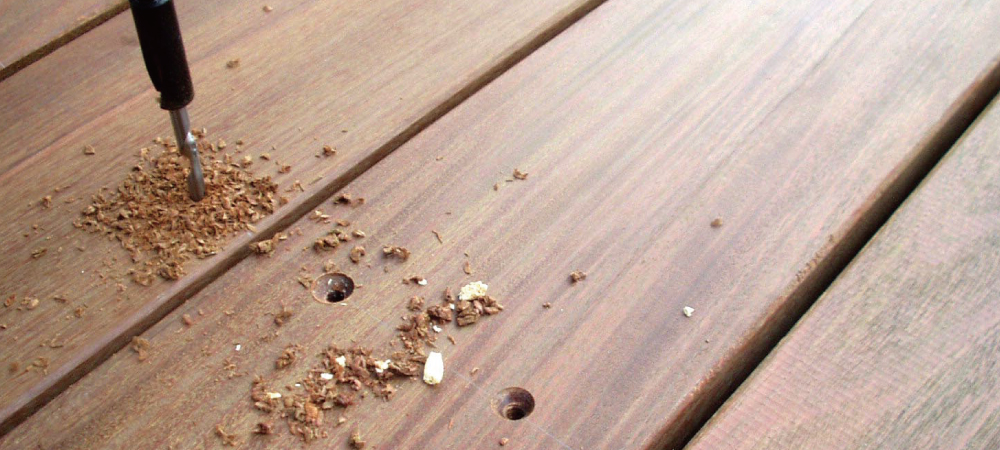

Pre-drilling and countersink processing on wood deck.

FEATURES

Specifications

Usage Wood
Hard Wood
Wet Wood
Material(s) High Speed Steel
Recommended tool(s) Electric Power Drill
Cordless Drill (over 14.4v)
Quick Change Impact Driver (over 14.4v)
RPm Range Less than 3,000 rpm
Shank Shape Hexagon:Hexagon Round:Round

Sizes

H.S.S. Countersink for Wood Deck
size

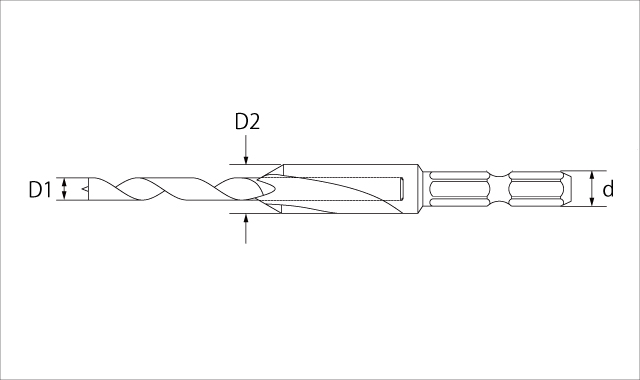

Size:D1×D2×Inner Drill Overall Length Shank Shape:d Unit:mm

For wood deck screw 4.5mm

Product No. Size Applicable Screw Size Shank Shape
58XW-3560 3.5X10X60L 4.5X35L
6.35Hexagon
58XW-3570 3.5X10X70L 4.5X45L
6.35Hexagon
58XW-3580 3.5X10X80L 4.5X55L
6.35Hexagon
58XW-3590 3.5X10X90L 4.5X65L
6.35Hexagon
58XW-35100 3.5X10X100L 4.5X75L
6.35Hexagon

QTY(Inner Box):6pcs

For wood deck screw 5.5mm

Product No. Size Applicable Screw Size Shank Shape
58XW-60 4.5X10X60L 5.5X35L
6.35Hexagon
58XW-70 4.5X10X70L 5.5X45L
6.35Hexagon
58XW-80 4.5X10X80L 5.5X55L
6.35Hexagon
58XW-90 4.5X10X90L 5.5X65L
6.35Hexagon
58XW-100 4.5X10X100L 5.5X75L
6.35Hexagon
58XW-115 4.5X10X115L 5.5X90L
6.35Hexagon

QTY(Inner Box):6pcs

Assembly

Inner Drill

Inner drill
size

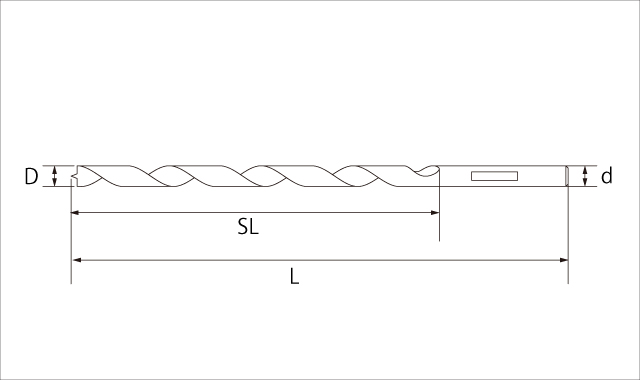

Size:DxL Spiral Length:SL Shank Shape:d Unit:mm

For wood deck screw 4.5mm

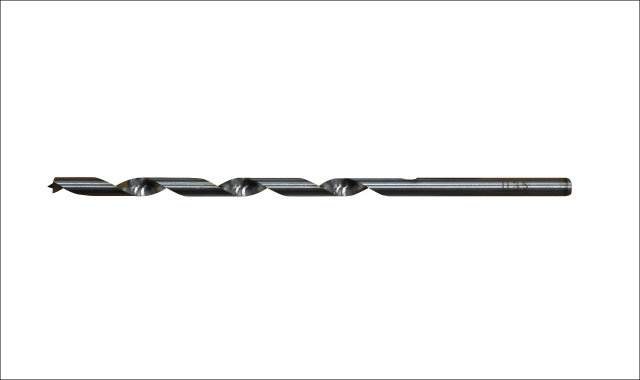

Product No. Size Spiral Length Shank Shape
58XW-CD3560 3.5X60L 40
3.5Round
58XW-CD3570 3.5X70L 50
3.5Round
58XW-CD3580 3.5X80L 60
3.5Round
58XW-CD3590 3.5X90L 70
3.5Round
58XW-CD35100 3.5X100L 80
3.5Round

QTY(Inner Box):6pcs

For wood deck screw 5.5mm

Product No. Size Spiral Length Shank Shape
58XW-CD60 4.5X60L 40
4.5Round
58XW-CD70 4.5X70L 50
4.5Round
58XW-CD80 4.5X80L 60
4.5Round
58XW-CD90 4.5X90L 70
4.5Round
58XW-CD100 4.5X100L 80
4.5Round
58XW-CD115 4.5X115L 95
4.5Round

QTY(Inner Box):6pcs

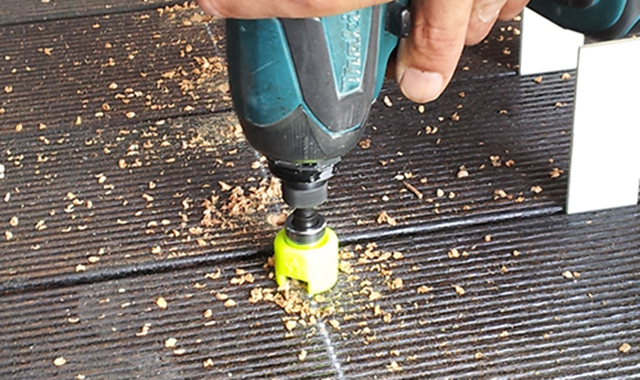

Counter Bore

Counter Bore
size

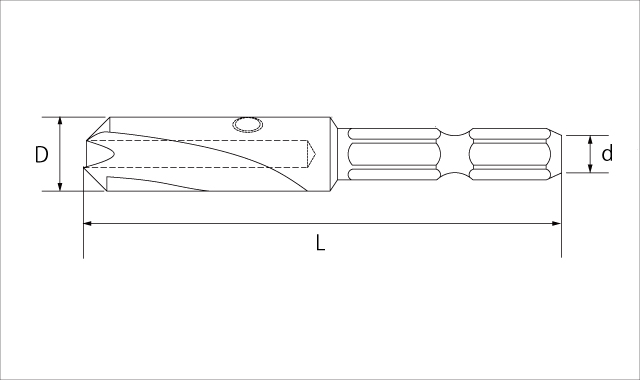

Size:D Overall Length:L Shank Shape:d Unit:mm

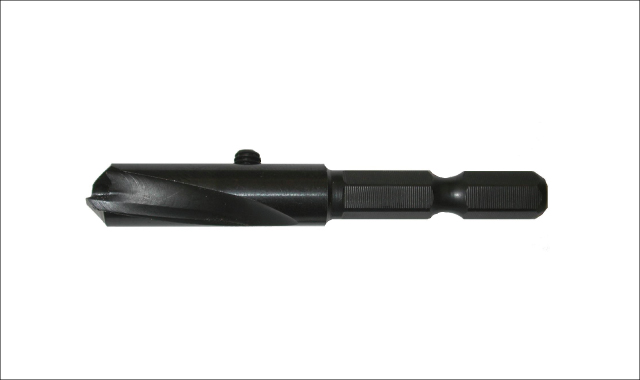

Product No. Size Inner Drill Size Overall Length Max Depth Shank Shape
58X-OD100 10 3.5 64 20
6.35Hexagon
58XW-OD100 10 4.5 64 20
6.35Hexagon

※58X-OD100:Shared use of replaceable counter bore 58X-3510.

Bits of knowledge

Q&A

What is the size of the drill stopper that fits the Countersink for wood decks?
Drill Stopper 10mm.
The screw broke when I tightened the wood deck screw.
Are there enough pilot holes? If the wood deck material is hardwood, make a pilot hole about 5 mm deeper than the total length of the screw.

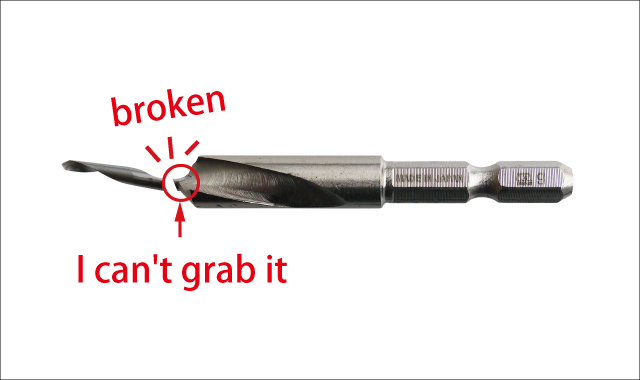

The inner drill of the countersink has broken off, but I can't pull it out because I can't grab the tip.

Inner Drill broke

The inner drill has broken off, but the remaining part is too short to grab and pull out.

free hole

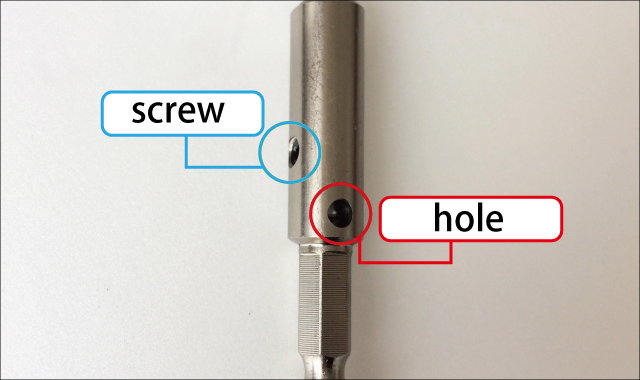

The blue circle is where the screws are fixed. The red circle is a hole.

How to take out

release

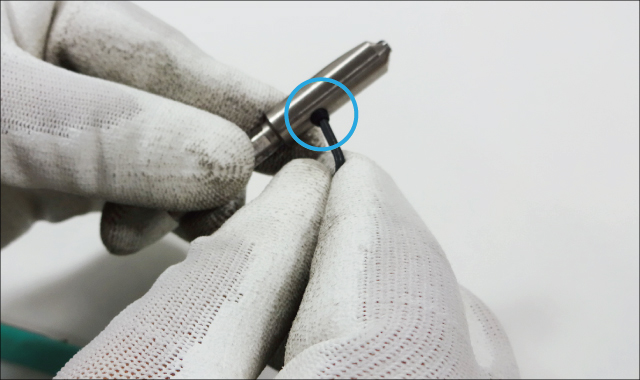

①Use the supplied hexagon wrench to loosen the screws.

squeezes

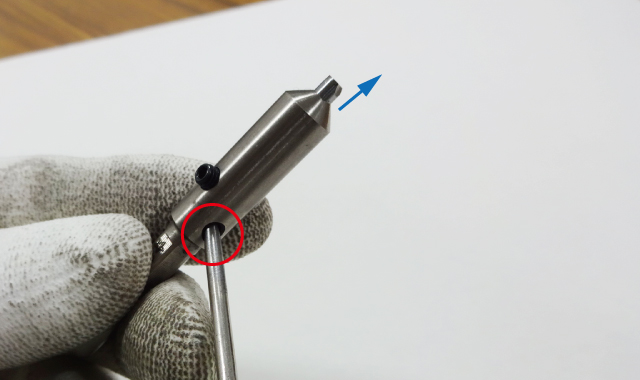

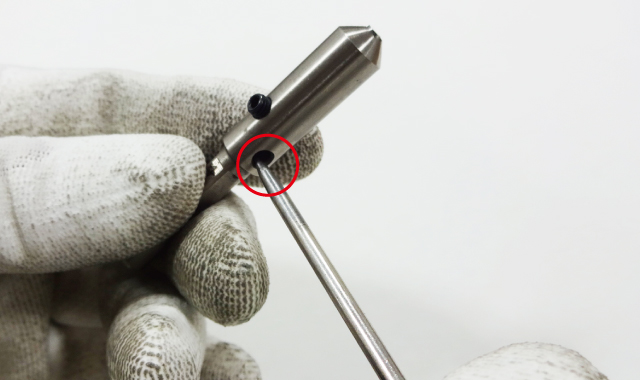

②Stick rod or pick squeezes from free hole.

cup and down

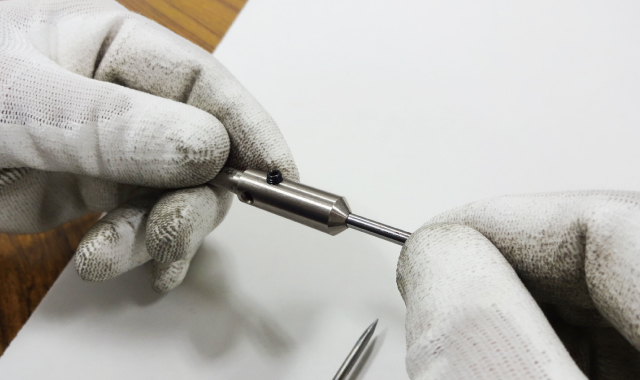

③Move the inserted object to raise the bottom of the inner drill, and the inner drill will come out.

pull out

④The inner drill will come out, so grab it and pull it out.

Help

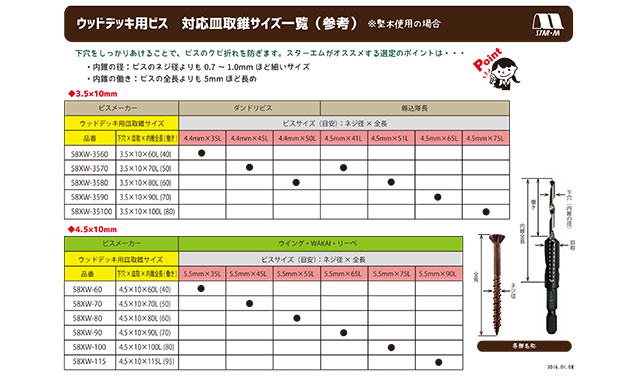

Wood deck correspondence table
