No.25 Plastic Bit

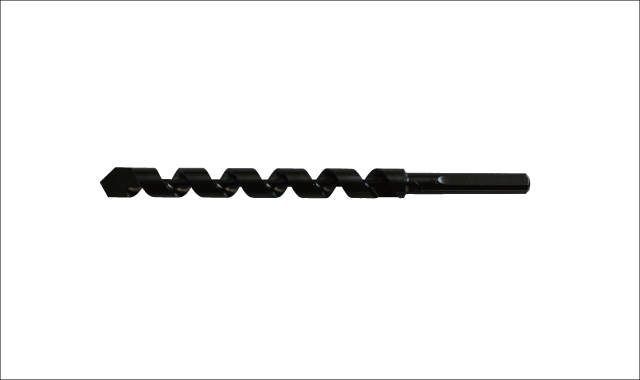

Plastic Bit
package Presentation

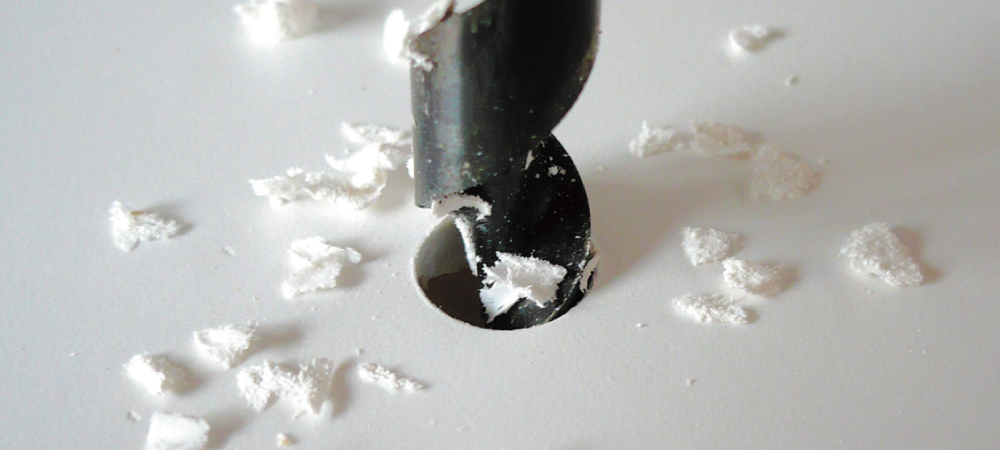

Example of use

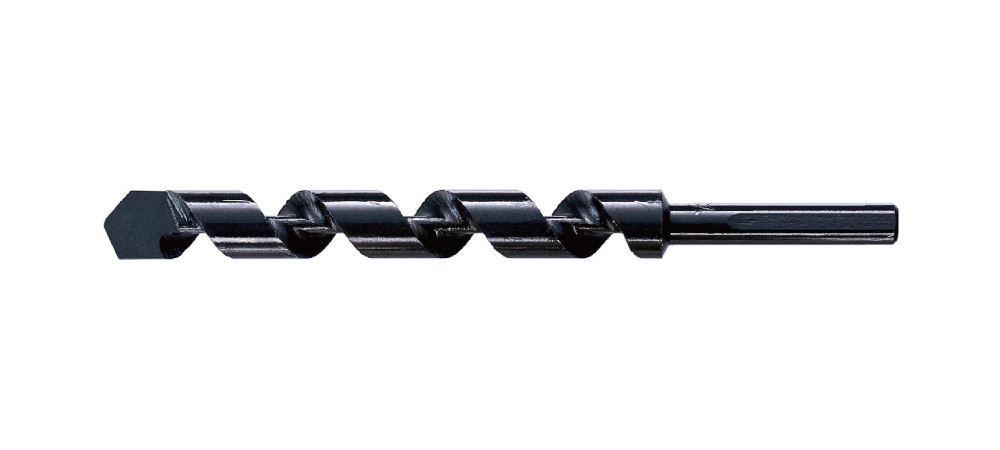

Plastic Bit

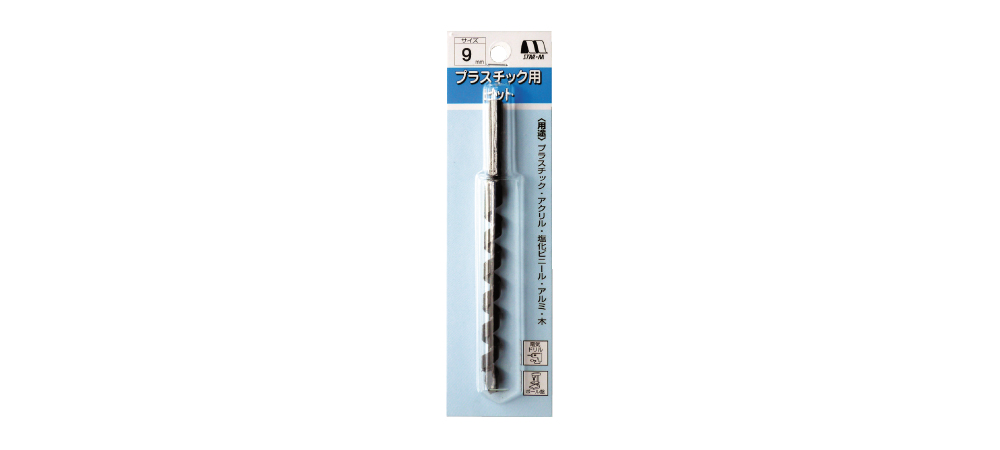

Package Presentation
Example of use
USE

Drilling for Plastic and Acrylic Board.

FEATURES

Specifications

Usage Plastic・Acrylic・PVC
Material(s) High Carbon Steel
Recommended tool(s) Electric Power Drill
Drill Press Machine
RPm Range Less than 2,500 rpm
Shank Shape Round:Round Three Flats:Three Flats
CaoutionCaution
  • Do not put too much pressure on the materials for it might break.

Sizes

Plastic Bit
Size

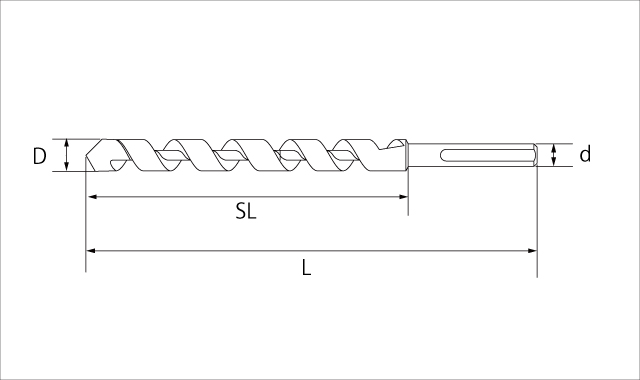

Size:D Overall Length:L Spiral Length:SL Shank Shape:d / Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape
25-030 3 80 45
3Round
25-040 4 100 60
4Round
25-050 5 100 60
5Round
25-060 6 120 80
6Round
25-070 7 120 80
7Three Flats
25-080 8 120 80
7Three Flats
25-090 9 140 100
7Three Flats
25-100 10 140 100
7Three Flats
25-110 11 140 100
7Three Flats
25-120 12 140 100
7Three Flats
25-130 13 140 100
7Three Flats
25-140 14 140 100
7Three Flats
25-150 15 140 100
7Three Flats
25-160 16 140 100
7Three Flats
25-170 17 140 100
7Three Flats
25-180 18 140 100
7Three Flats

QTY(Inner Box):12pcs / 14mm~ 6pcs
