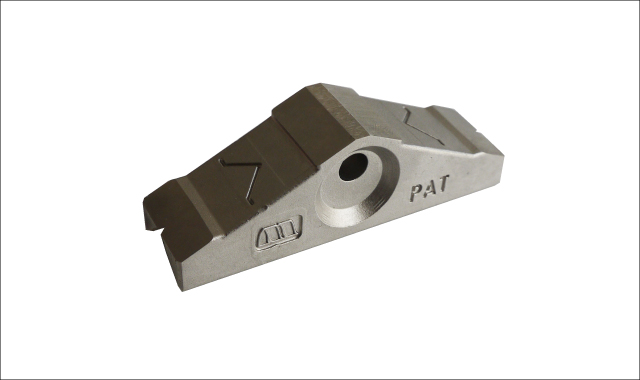

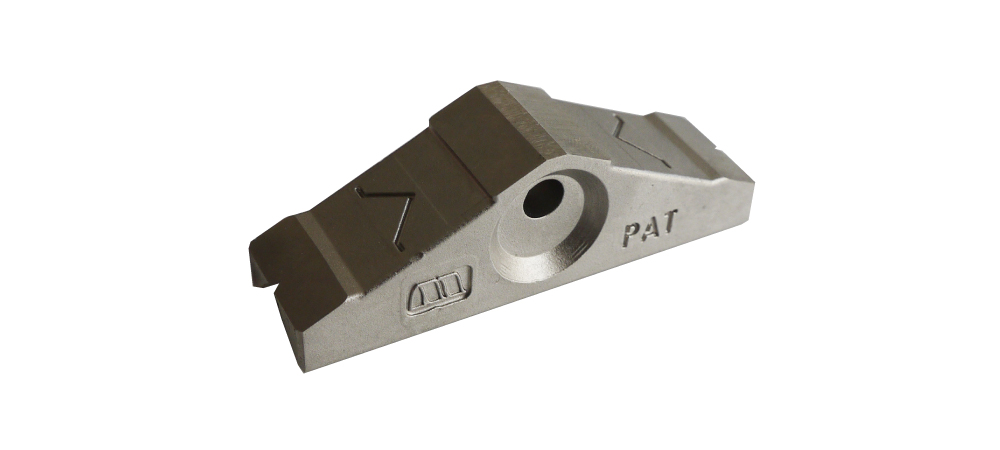

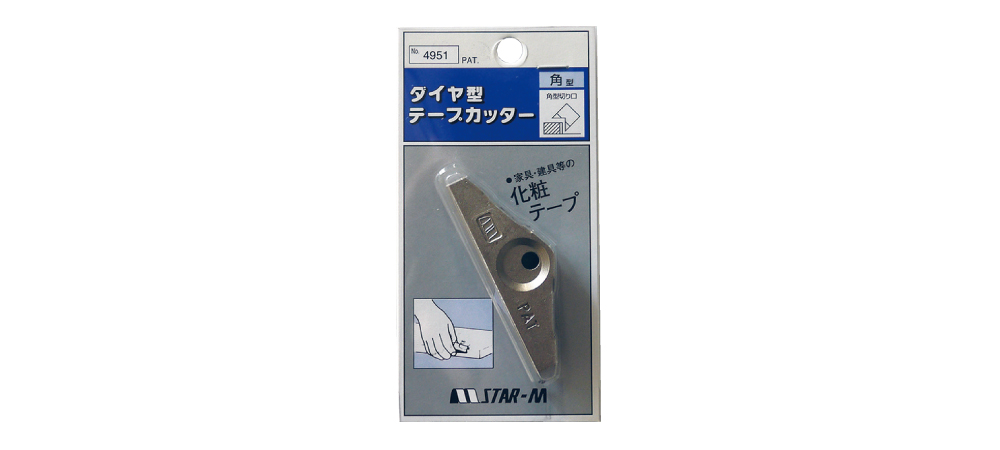

No.4951 Steel Type Edge Trimmer
USE
Cutting off for edge banding tape
FEATURES
- The blade is attached to both end of the Edge Trimmer, so you can cut from corner to corner.

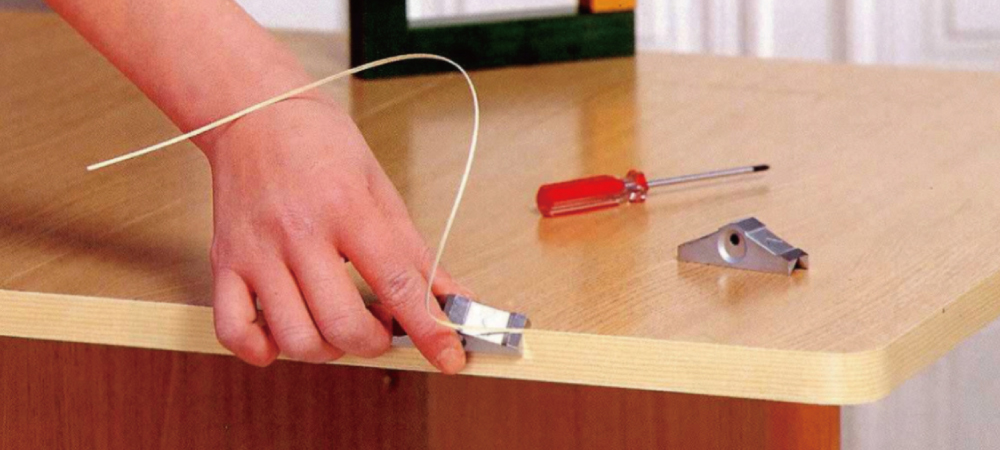

- Just slide it back and forth to cut the overhang.
- Compact for easy to handle.
- Cutting Edge can be regrinded.
Specifications
| Usage | Edge banding tape |
|---|---|
| Material(s) | High Carbon Steel |
Sizes

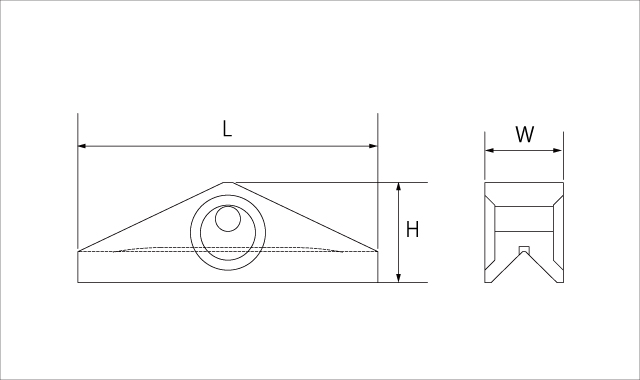

Overall Length：L Height：H Width：W Unit：mm
| Product No. | Size | Overall Length | Width | Height |
|---|---|---|---|---|
| 4951-M | Chamfer 1.0 | 60 | 15.5 | 20 |
| 4951-M06 | Chamfer 0.6 | 60 | 15.5 | 20 |
| 4951-K | Square | 60 | 15.5 | 20 |
QTY(Inner Box)：6pcs
Bits of knowledge

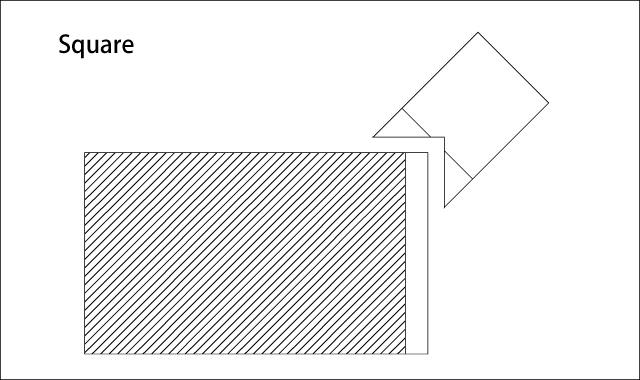

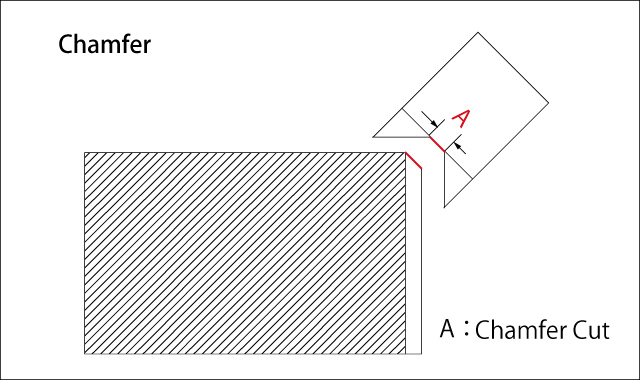

- Chamfered type and square type indicate the width that can be chamfered. In the case of chamfer type 0.6 mm, the part A is 0.6 mm.
- When Cutting off wood veneer edge banding tape are needed, the Neo Sharp can be used.
- When Cutting off for safety and security films are needed, the Ceramic Type Edge Trimmer can be used.
Help
How to re-sharpen?
Usage sharpening grinding stone

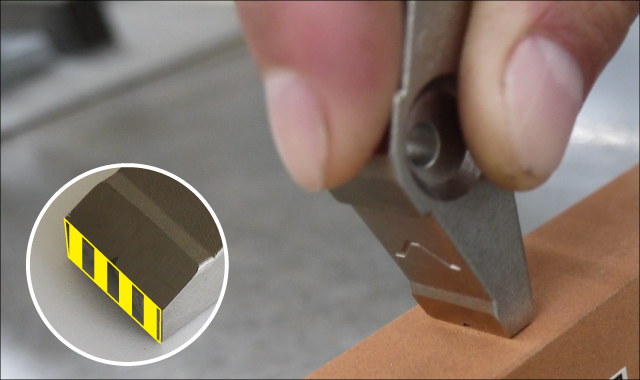

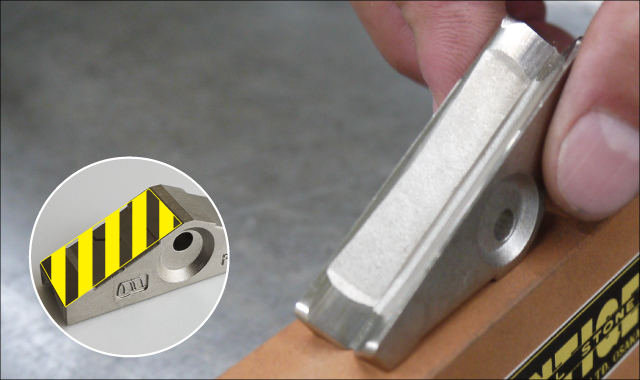

①Polish the colored area (same for the other side)
②Polish the colored area (same for the other side)

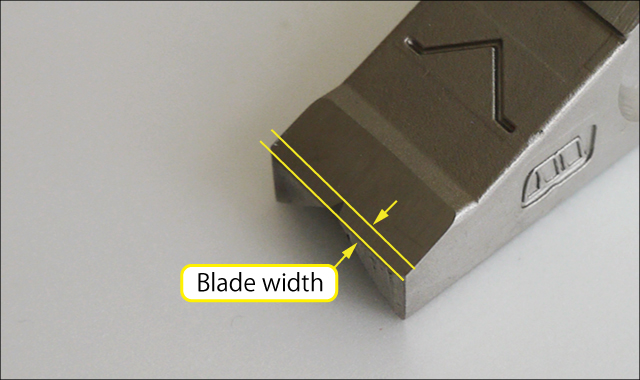

③Perform step ② until the blade width is about 1mm (same for the other side)

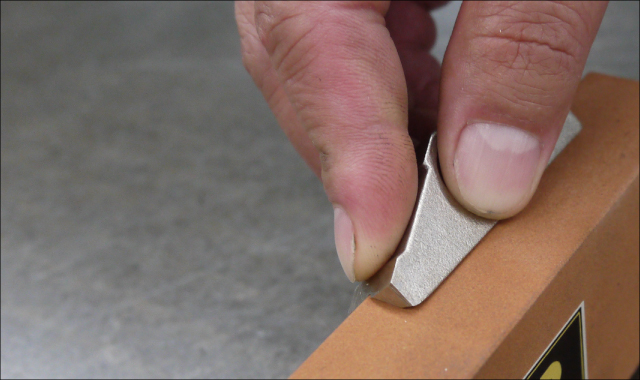

④If there are burrs, lightly apply a grinding stone as if you were cutting a decorative tape.
