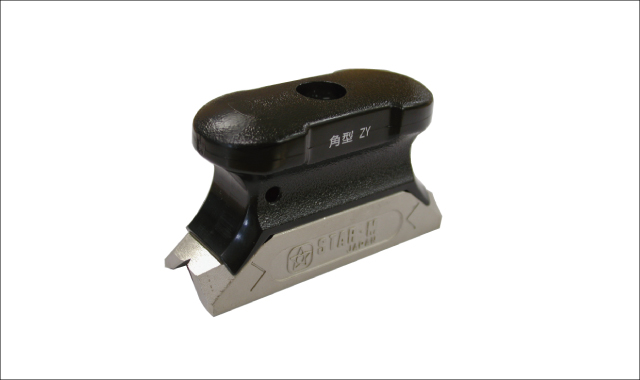

No.4960 Grip Type Edge Trimmer
USE
Cutting off for edge banding tape
FEATURES
- The blade is attached to the tip, so you can cut from corner to corner.
- The handle is slightly large and fits in your hand for easy gripping and stable weight for smooth operation.
- Cutting Edge can be regrinded.
Specifications
| Usage | Edge banding tape |
|---|---|
| Material(s) | Body：High Carbon Steel Grip：ABS |
Sizes

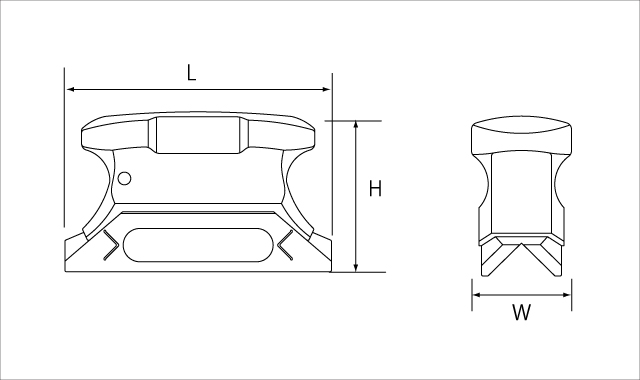

Overall Length：L Height：H Width：W Unit：mm
| Product No. | Size | Overall Length | Width | Height |
|---|---|---|---|---|
| 4960-M | Chamfer 1.0 | 80 | 25 | 45 |
| 4960-M06 | Chamfer 0.6 | 80 | 25 | 45 |
| 4960-K | Square | 80 | 25 | 45 |
QTY(Inner Box)：6pcs
Bits of knowledge

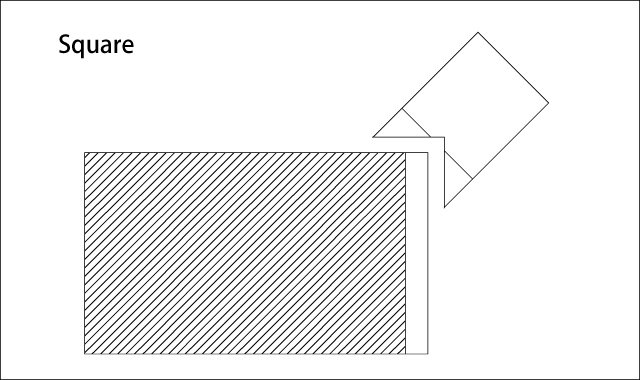

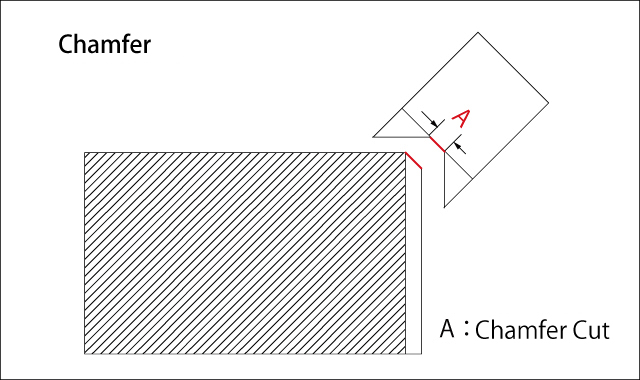

- Chamfered type and square type indicate the width that can be chamfered. In the case of chamfer type 0.6 mm, the part A is 0.6 mm.
- When Cutting off wood veneer edge banding tape are needed, the Neo Sharp can be used.
- When Cutting off for safety and security films are needed, the Ceramic Type Edge Trimmer can be used.
Help
How to re-sharpen?
Usage sharpening grinding stone.
The polished photo is a Steel Type Edge Trimmer, but the procedure is the same.

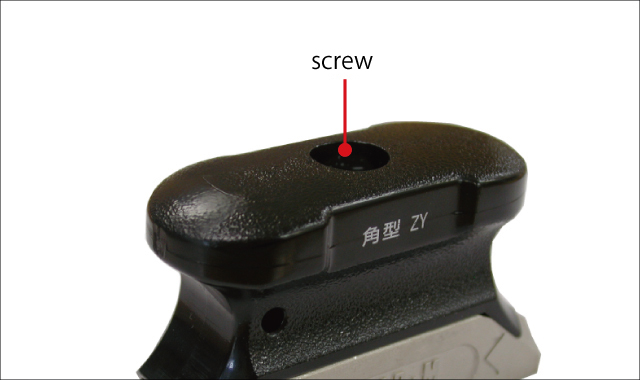

①Loosen the screw and remove the grip part

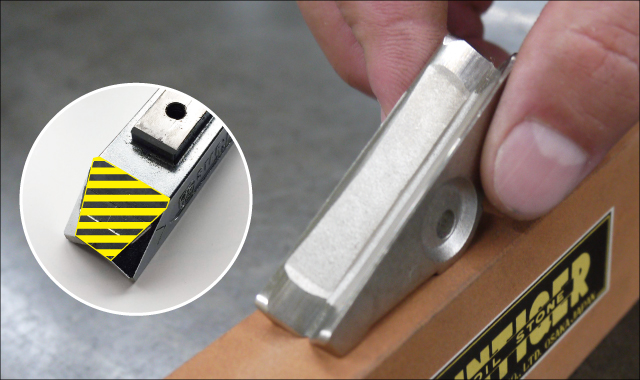

②Polish the colored area (same for the other side)

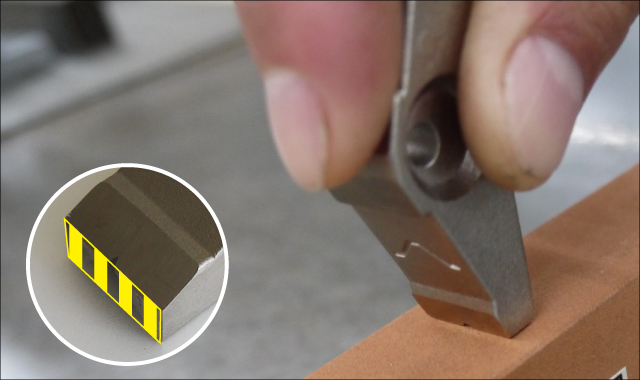

③Polish the colored area (same for the other side)

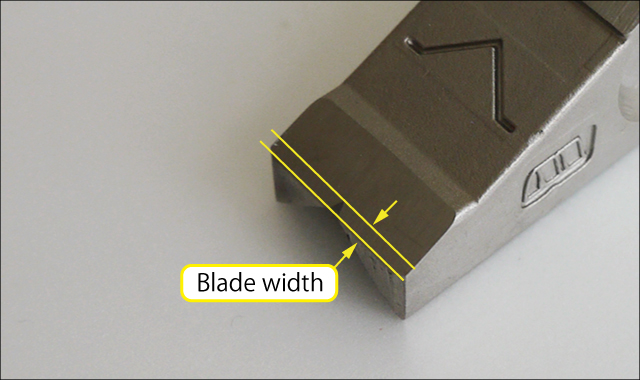

④Perform step ② until the blade width is about 1mm (same for the other side)

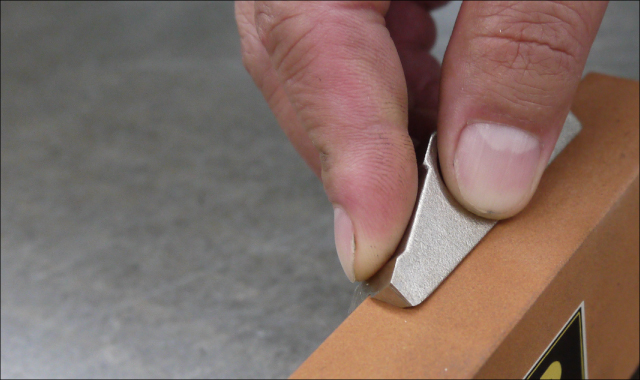

⑤If there are burrs, lightly apply a grinding stone in the same way as cutting the decorative tape.

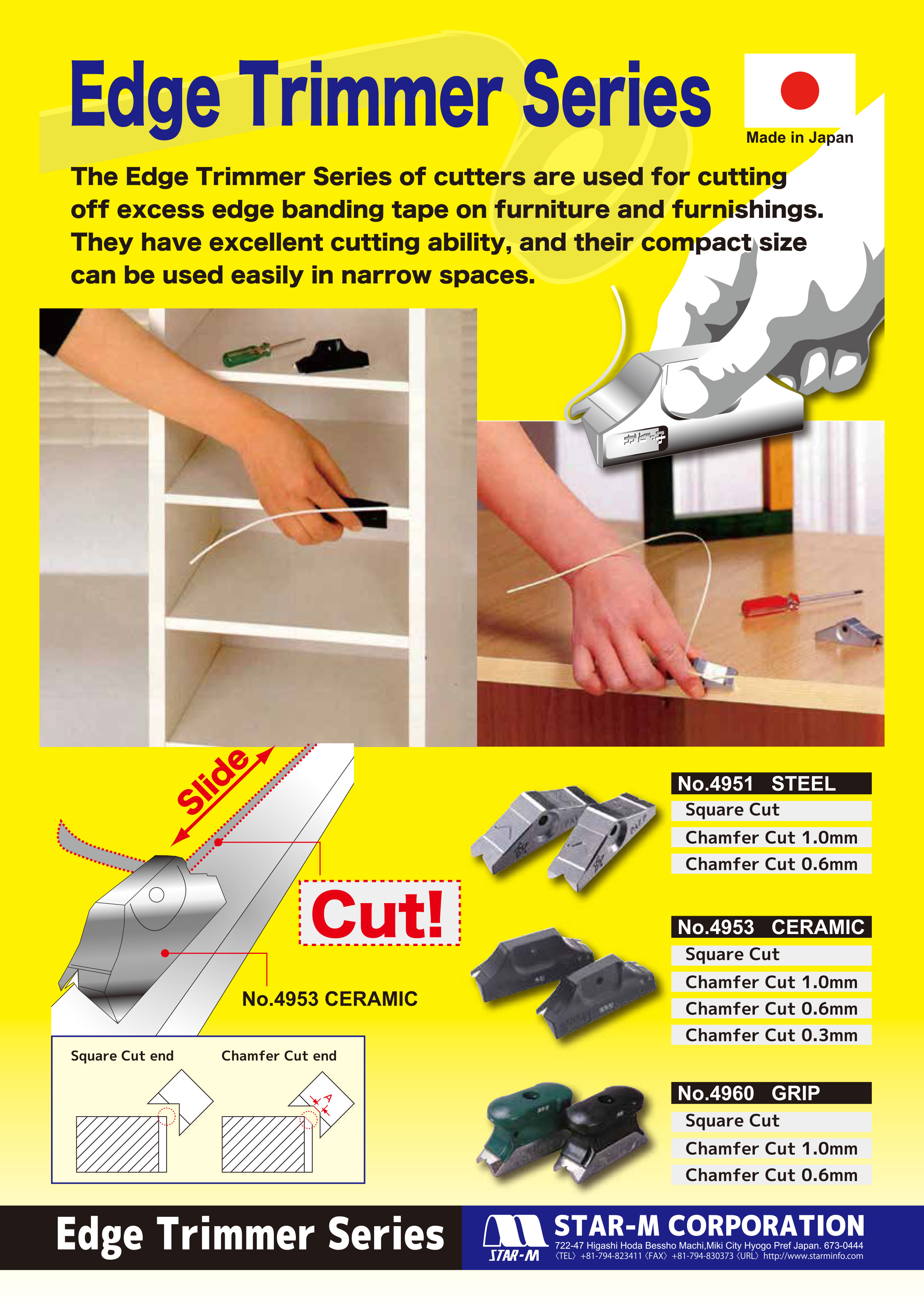

Catalog
