No.70/70X Dowel Bit
USE

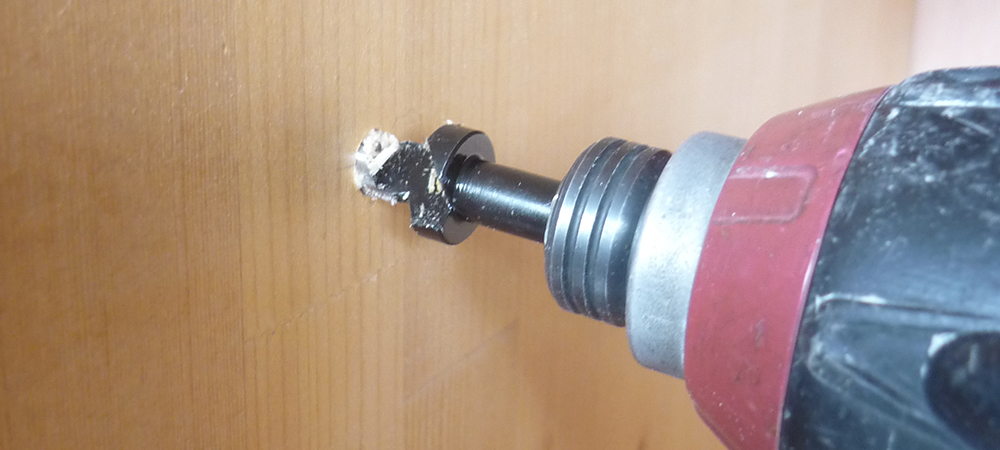

Work of fixed depth for shelf dowels
FEATURES
- Making hole of fixed depth with stopper.
- For high precision work, it is recommended to use the round shaft type with a Drill Press Machine.
- The tapered stopper prevents scratching of the processed material.
Specifications
| Usage | Wood |
|---|---|
| Material(s) | High Carbon Steel |
| Recommended tool(s) | 【No.70】 Cordless Drill (over 14.4v) Electric Power Drill Drill Press Machine 【No.70X】 Quick Change Impact Driver (over 14.4v) Electric Power Drill |
| RPm Range | Less than 3,000 rpm |
| Shank Shape |  ：Round  ：Hexagon |
 Caution |
The Dowel Bit with round shank has a round shank in terms of accuracy. When using with a Drill Press Machine, fix the material firmly so that the material does not lift up. |
Sizes

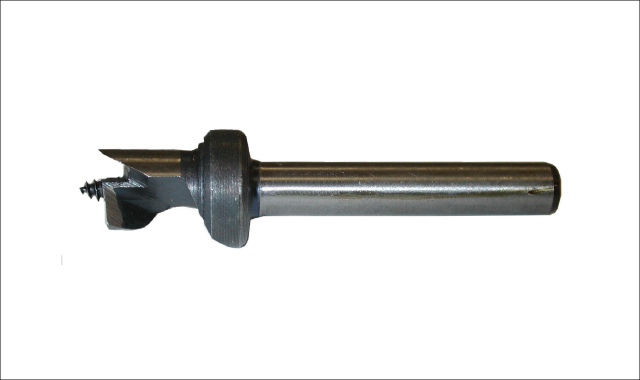

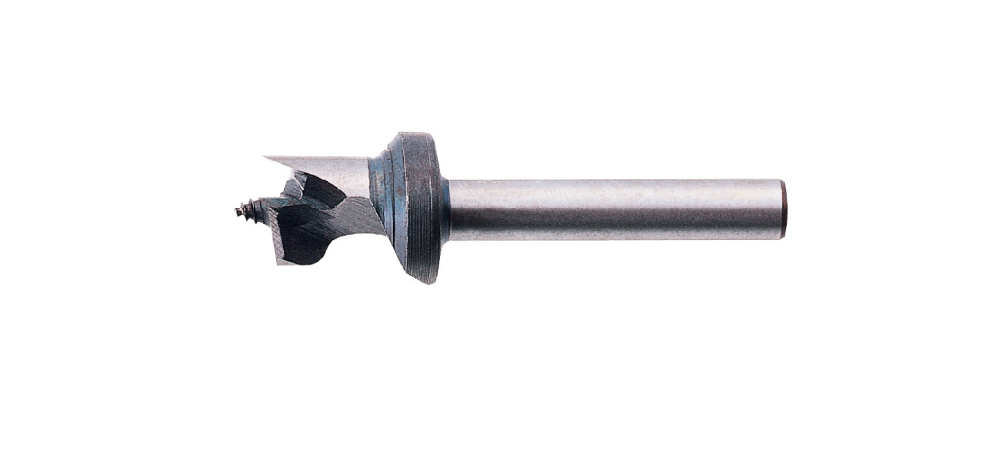

No.70 Dowel Bit with Round Shank

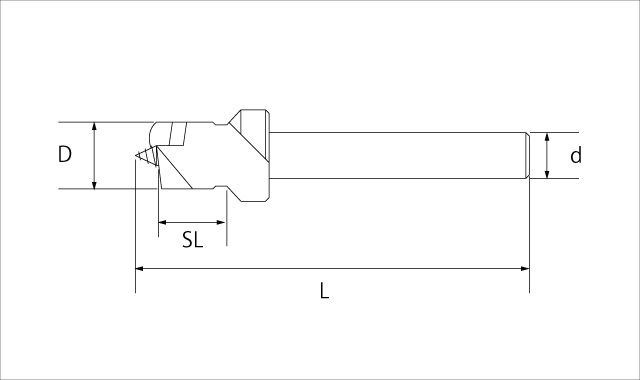

Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
| Product No. | Size（Cutting） | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 70-080 | 8（7.5） | 54 | 8 | 6.5 |
| 70-090 | 9（8.5） | 55 | 9 | 6.5 |
| 70-100 | 10（9.5） | 56 | 10 | 6.5 |
| 70-110 | 11（10.5） | 57 | 11 | 6.5 |
| 70-120 | 12（11.5） | 58 | 12 | 6.5 |
QTY(Inner Box)：10pcs

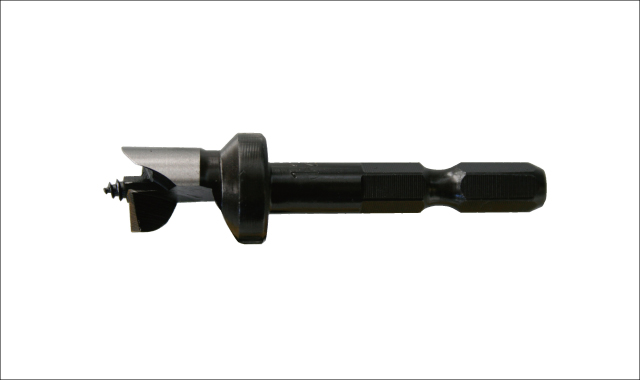

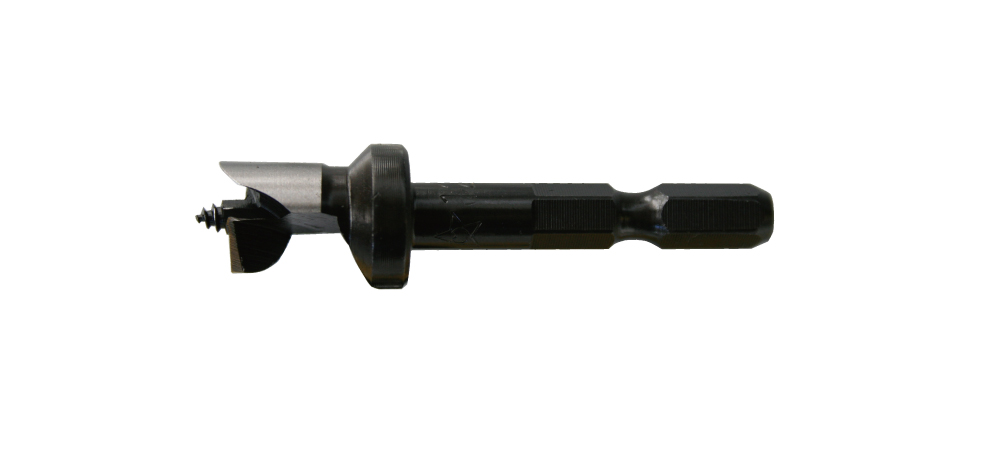

No.70X Dowel Bit with Hexagon Shank

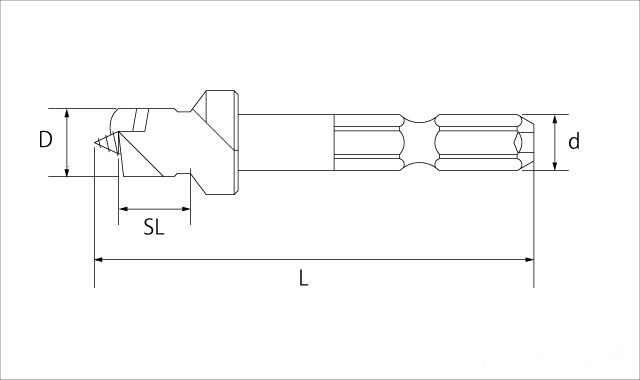

Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
| Product No. | Size（Cutting） | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 70X-060 | 6（5.5） | 52 | 6 | 6.35 |
| 70X-080 | 8（7.5） | 54 | 8 | 6.35 |
| 70X-090 | 9（8.5） | 55 | 9 | 6.35 |
| 70X-100 | 10（9.5） | 56 | 10 | 6.35 |
| 70X-110 | 11（10.5） | 57 | 11 | 6.35 |
| 70X-120 | 12（11.5） | 58 | 12 | 6.35 |
QTY(Inner Box)：10pcs
Custom Auger Bits
Any Length any size are available by your needs.
We can make the various Auger Bits to comply with your needs.
